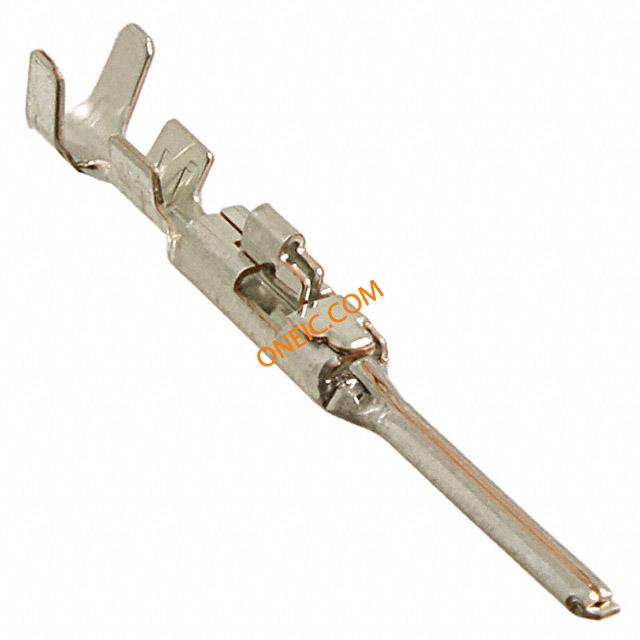

175153-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece CONN TAB 26-22AWG TIN Contact, Tab, 26-22 AWG, U-P Power to the Board TAB 26-22 AWG TIN 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmTabPackaging Method = Loose PieceSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Contact,Tab,26-22AWG,U-P TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 UNIV POWER TAB CONT L/P |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 300, 50 |
| 最大额定电流 | 12 A | ||
机械参数
| 镀层 | 预镀锡 | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触点形式 | Straight |
| 触头类型 | Power | 插针或插孔 | Tab |
| 电缆直径 | 0.35mm² | 连接器类型 | Connector Power |
| 接触镀层 | Tin | 箔压接区域 | .8 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 包装数量 | 1000 | 端接排数 | 压接 |
| 端接样式 | 公端 | 第一触头极性 | Socket (Female) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 1.2 – 2 mm [ .047 – .079 in ] | 接触件表面处理 - 配合 | 预镀锡 |
| 接触镀层厚度 | .8 µm [ 31.49 µin ] | 线规或范围 - AWG | 26-22 |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | AMP Universal Power | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
| 可用温度范围 | -30to+105°C | 结工作温度 | 105°C |
文档与媒体
相关型号
