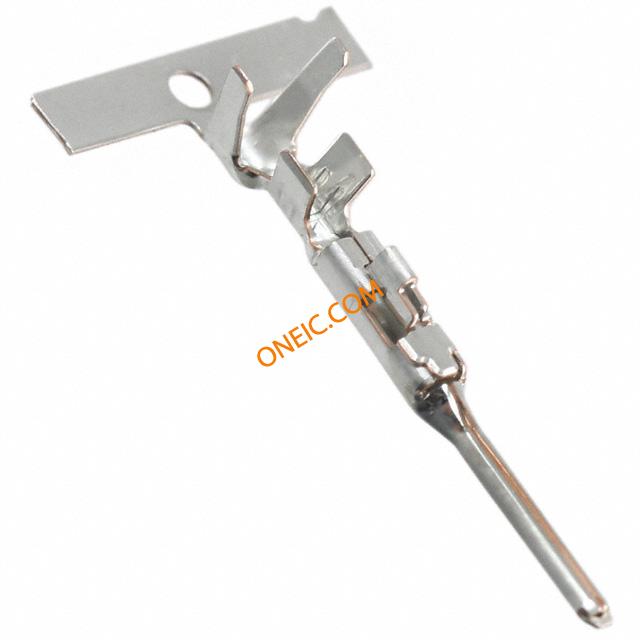

175150-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip CONN CONTACT TAB 20-16AWG TIN Contact,power,crimp,tab,Sn,20-16awg Heavy Duty Power Connectors U-P TAB 20-16 CU/SN CU/SN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER CONN TAB |
| 分类 |
商业参数
| 其他名称 | A100482CT | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 VAC | 供电电压 | 300, 50 |
| 最大额定电流 | 12 A | ||
机械参数
| 镀层 | 预镀锡 | 包装方式 | Tape & Reel (TR) |
| 绝缘类型 | Without | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触点形式 | Straight |
| 触头类型 | Power | 插针或插孔 | Tab |
| 电缆直径 | 1.42mm² | 连接器类型 | Connector Power |
| 接触镀层 | Tin | 箔压接区域 | .8 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 总长度 | 21.95mm | 包装数量 | 4000 |
| 端接排数 | 压接 | 端接样式 | 公端 |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 1.7 – 3.3 mm [ .067 – .13 in ] | 接触件表面处理 - 配合 | 预镀锡 |
| 接触镀层厚度 | .8 µm [ 31.49 µin ] | 线规或范围 - AWG | 16AWG |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | AMP Universal Power | 产品子类型 | Contacts |
| 应用细节 | Power | 适用产品/相关产品 | 外壳盖 |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
