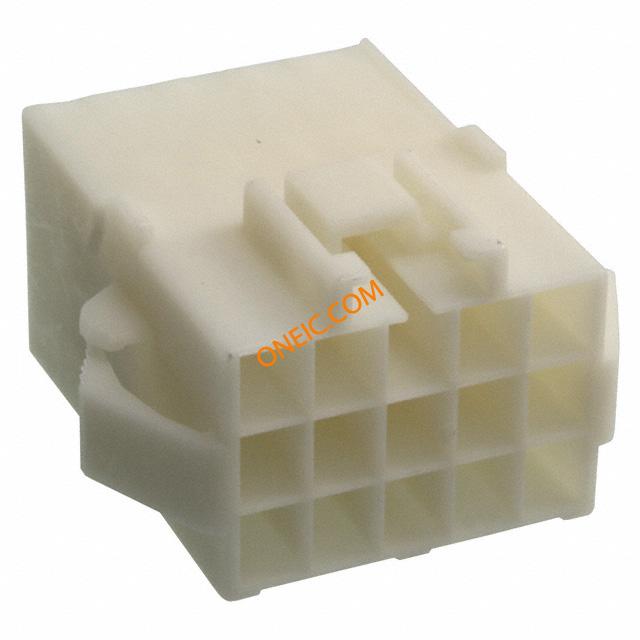

176300-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 15 POS 3.96mm Crimp ST Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN RCPT 15POS UNIV PWR PNL MT Female Compact Power Connector Socket,12A 600V ac Power to the Board RCPT 15P UNIV PNL MT Conn Housing RCP 15 POS 3.96mm Crimp ST Loose Piece Product Highlights:HousingReceptacle (Cap)Loose Piece4.60 x 3.96 mm Centerline, MatrixNumber of Positions = 15Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Housing,rcp,panelmount,15wtabcontact TE Connectivity 电源连接器插座母, 12A 600 V 交流, -30 → +105 °C UNVI POWER CAP HSG 15P PNL MTG
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Power to the Board	标准包装数量	Bulk
工厂包装数量	500

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	UL阻燃等级	UL 94V-0
材料阻燃等级	UL 94V-0

电气参数

额定电压	600 V ac	供电电压	600
输入电阻	1000	最大额定电流	12A
连接器类型 - 电压输入	Socket

机械参数

颜色	Natural	间距	3.96 mm
高度	17.6 mm [ .69 in ]	长度	29 mm [ 1.14 in ]
密封型	Not Sealed	包装方式	Bulk
排间距	0.181" (4.60mm)	触头类型	Tab
安装类型	Straight	连接器类型	Receptacle
接触镀层	Without	紧固类型	Locking Ramp
安装样式	不带	排数	3
封装形式	Receptacle	插入件材料	铜合金
锁定特性	Latch	壳体材料	Nylon
包装数量	Loose Piece	面板安装类型	带有
主要材料	Connector	连接器 - 电缆	插座
端接样式	Crimp	配接方向	Without
触点数	15	接触件端接	Crimp
位数	15	兼容外壳尺寸（如TM-700等）	插头护套
安装孔直径	带有	中心触点材料	4.60 x 3.96 [.181 x .156]
典型触点布局	Matrix	静电放电屏蔽	不带
第一连接器安装类型	Panel

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品子类型	Housing

环境参数

测试温度

标准件 - 非灼热丝

工作温度

+105°C
