点击放大查看

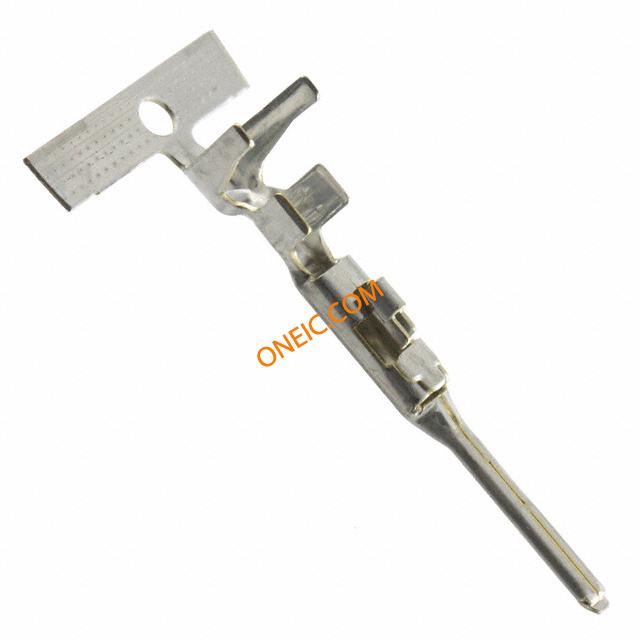

175150-2
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip CONTACT TAB 20-16AWG Heavy Duty Power Connectors U-P TAB 20-16 BR/SN 175150-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector CONTACT, PLUG, 20-16AWG AMP UNIVE. POWER CONN TAB CONT |
| 分类 |
商业参数
| 其他名称 | A100483CT | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 VAC | 最大额定电流 | 12 A |
机械参数
| 重量 | 0.02 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Tab |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 触头材料 | Brass | 第一触头极性 | :Pin |
| 接触件端接 | Crimp | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :- | 产品子类型 | Contacts |
| 适用产品/相关产品 | :- | ||
