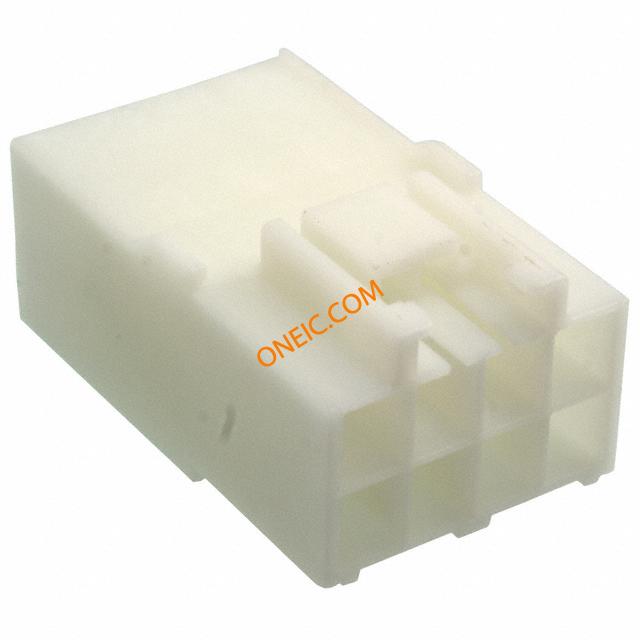

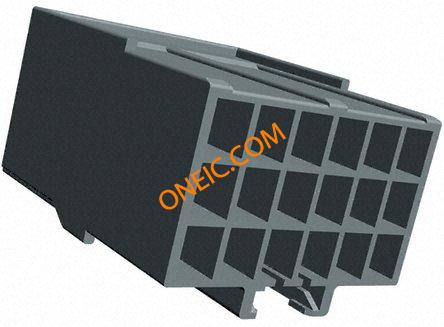

176286-1
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS 3.96mm Crimp ST Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN HOUSING RCPT 8POS NATURAL AMP universal hsing,rcp,8way tab contact Power to the Board RCPT 8 POS NATURAL Conn Housing RCP 8 POS 3.96mm Crimp ST Loose Piece Product Highlights:HousingReceptacle (Cap)Packaging Method = Loose Piece4.60 x 3.96 mm Centerline, MatrixNumber of Positions = 8Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPuniversalhsing,rcp,8waytabcontact TE Connectivity AMP Universal Power 系列 2 行 3.96mm 节距 8 路 直 母 PCB 壳体 UNIV POWER CAP HSG 8P F/H |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 输入电阻 | 1000 |
| 最大额定电流 | 7 | ||
机械参数
| 颜色 | Natural | 深度 | 29mm |
| 间距 | 3.96 mm | 宽度 | 13mm |
| 高度 | 13 mm [ .51 in ] | 长度 | 16.98mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 16-26 AWG | 方向 | 直 |
| 排间距 | 0.181" (4.60mm) | 触头类型 | Tab |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | 不带 | 排数 | 2 |
| 封装形式 | Receptacle | 插入件材料 | 铜合金 |
| 锁定特性 | Latch | 壳体材料 | Nylon |
| 包装数量 | Loose Piece | 面板安装类型 | 不带 |
| 主要材料 | Connector | 端接样式 | 公端 |
| 配接方向 | Without | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 安装孔直径 | 带有 |
| 中心触点材料 | 4.60 x 3.96 [.181 x .156] | 典型触点布局 | Matrix |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 176286 |
| 制造商全称 | 176286Series | 产品子类型 | Housing |
| 适用产品/相关产品 | Universal Power Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
文档与媒体
相关型号

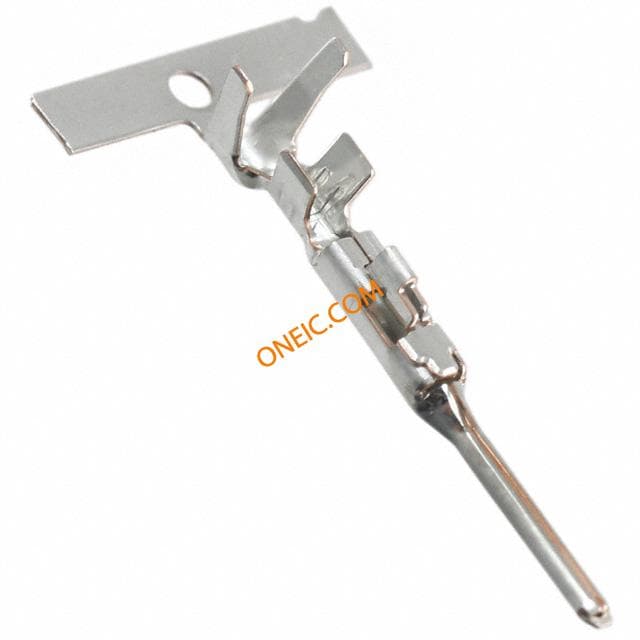

175150-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip CONN CONTACT TAB 20-16AWG TIN Contact,power,crimp,tab,Sn,20-16awg Heavy Duty Power Connectors U-P TAB 20-16 CU/SN CU/SN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER CONN TAB

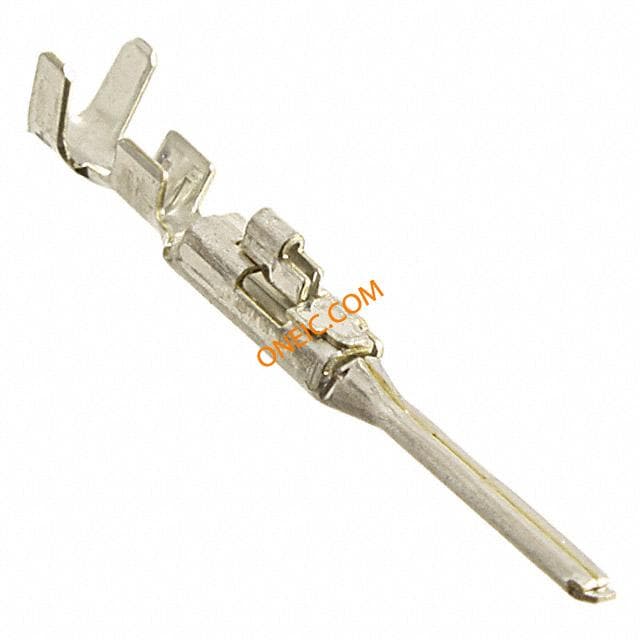

175149-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip CONN TAB 26-22AWG TIN Contact,power,crimp,tab,Sn,26-22awg Power to the Board AMP UNIVE POWER CONN TAB CONT Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector CONTACT,TAB,26-22AWG TE Connectivity AMP Universal Power 系列 公 压接触点, 压接, 镀锡触点 AMP UNIVE. POWER CONN TAB CONT
175149-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONTACT TAB 0.12-0.35AWG TIN Contact, Tab, 26-22 AWG, U-P Power to the Board UNIVERSAL POWER CONN TAB 175149-1 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Contact,Tab,26-22AWG,U-P TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER CONN TAB

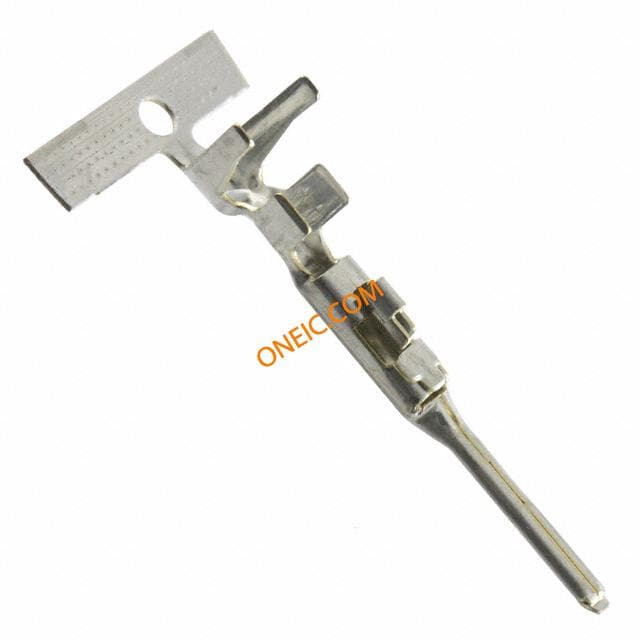

175150-2
