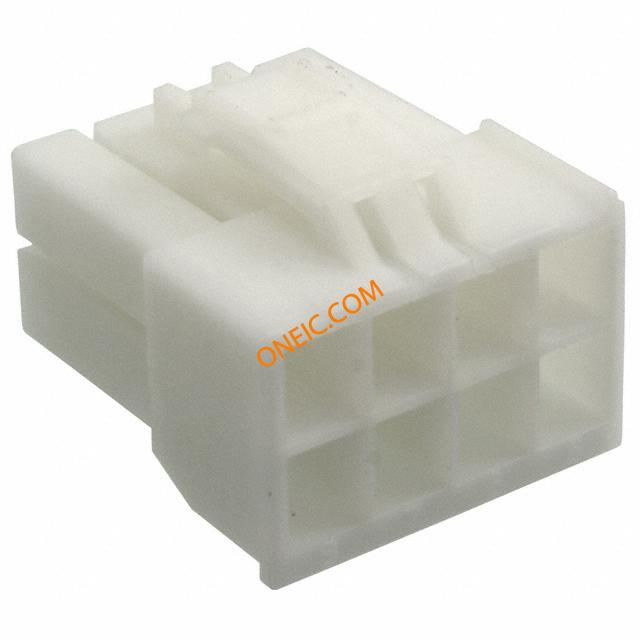

176275-1
| 制造商 | |
| 描述 | Conn Housing PL 8 POS 3.96mm Crimp ST Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN HOUSING PLUG 8POS NATURAL Housing, FH, 8 way, Rec, U-P Power to the Board PLUG 8 POS NATURAL 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:HousingPlugPackaging Method = Loose Piece4.60 x 3.96 mm Centerline, MatrixNumber of Positions = 8Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Housing,FH,8way,Rec,U-P TE Connectivity AMP Universal Power 系列 2 行 3.96mm 节距 8 路 直 公 PCB 壳体 UNIV POWER PLUG HSG 8P F/H |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 300 V | 供电电压 | 600 |
| 输入电阻 | 1000 | 最大额定电流 | 7 |
机械参数
| 颜色 | Natural | 深度 | 19.3mm |
| 间距 | 3.96 mm | 宽度 | 14.35mm |
| 高度 | 14.35 mm [ .46 in ] | 长度 | 16.98mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.181" (4.60mm) |
| 触头类型 | Female Socket | 柱间距 | 4.60 x 3.96 [.181 x .156] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | 不带 | 排数 | 2 |
| 封装形式 | Plug | 插入件材料 | 铜合金 |
| 锁定特性 | Latch | 壳体材料 | Nylon |
| 包装数量 | Loose Piece | 面板安装类型 | 不带 |
| 主要材料 | Connector | 端接样式 | Crimp |
| 配接方向 | Without | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 兼容外壳尺寸（如TM-700等） | 母端外壳 | 安装孔直径 | 带有 |
| 典型触点布局 | Matrix | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 176275 |
| 制造商全称 | 176275Series | 产品子类型 | Housing |
| 适用产品/相关产品 | Universal Power Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | - 30 C to + 105 C |
