175154-2
| 制造商 | |

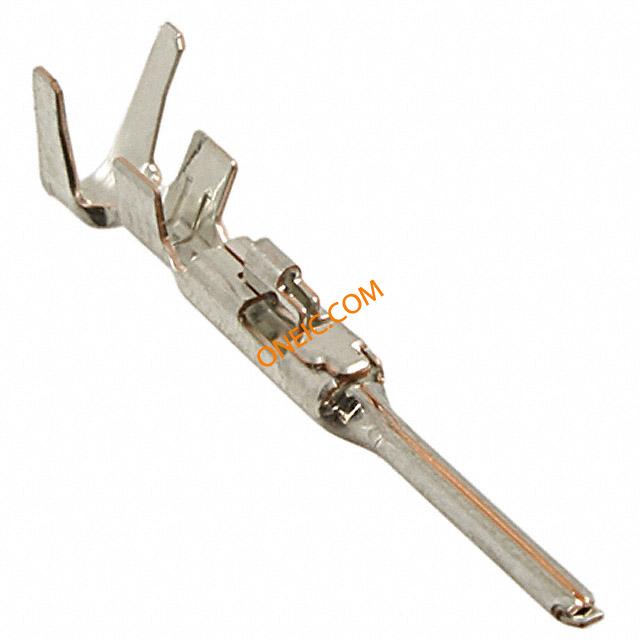

| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. U/P TAB CONT L/P U-P 1 Male Straight Heavy Duty Power Connector, Cable Mount 12A,600V ac Power to the Board U/P TAB CONT L/P 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 2.00 - 3.30 mmTabLoose PieceSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPuniversal,contact,tab,0.50-1.40mm2 TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V ac | 供电电压 | 300, 50 |
| 最大额定电流 | 12A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 镀层 | 预镀锡 | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触点形式 | Straight |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Tab | 电缆直径 | 1.42mm² |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 排数 | 1 | 箔压接区域 | .8 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 包装数量 | 1000 | 主要材料 | Power |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 适用端子尺寸 | No |
| 触点数 | 1 | 接触件端接 | Crimp |
| 绝缘直径 | 1.7 – 3.3 mm [ .067 – .13 in ] | 接触件表面处理 - 配合 | 预镀锡 |
| 接触镀层厚度 | .8 µm [ 31.49 µin ] | 线规或范围 - AWG | 20-16 |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | U-P | 制造商全称 | U-PSeries |
| 产品子类型 | Contacts | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | - 30 C to + 105 C |
文档与媒体
相关型号
