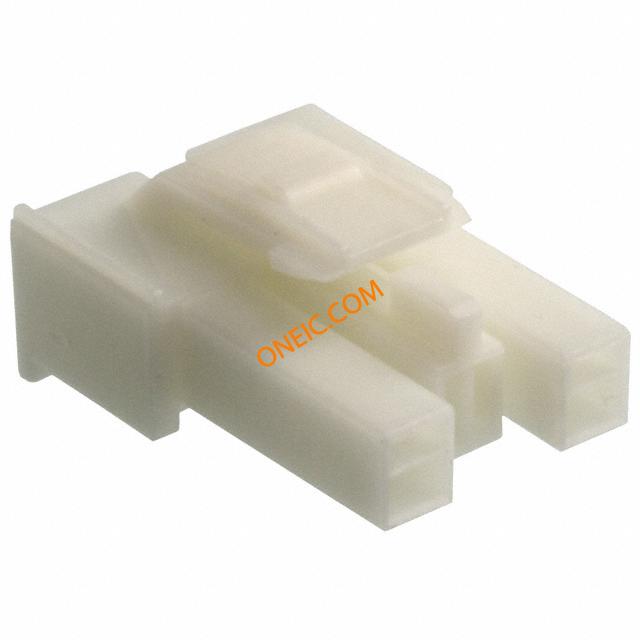

178125-1
| 制造商 | |
| 描述 | Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG 2POS .156 IN-LINE Housing, FH, 2 way, Rec, U-P Board to Board & Mezzanine Connectors 2P PLUG HOUSING 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:HousingPlugLoose Piece3.96 mm Centerline, MatrixNumber of Positions = 2Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Housing,FH,2way,Rec,U-P TE Connectivity AMP Universal Power 系列 3.96mm 节距 2 路 直 公 PCB 壳体 U/POWER PLUG HSG 2P 7.92M/M |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 600 |
| 输入电阻 | 1000 | 最大额定电流 | 13 A |
机械参数
| 颜色 | Natural | 深度 | 19.3mm |
| 间距 | 3.96 mm | 宽度 | 9.65mm |
| 高度 | 7 mm [ .28 in ] | 长度 | 13.7mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 16-26 AWG | 方向 | 直 |
| 触头类型 | Female Socket | 柱间距 | 3.96 [.156] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | 不带 | 排数 | 1 |
| 封装形式 | Plug | 插入件材料 | 铜合金 |
| 锁定特性 | Latch | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | Loose Piece |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | 插座 | 配接方向 | Without |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 接头组件 |
| 安装孔直径 | 带有 | 典型触点布局 | In-Line |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 178125 |
| 制造商全称 | 178125Series | 产品子类型 | Housing |
| 适用产品/相关产品 | Universal Power Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
