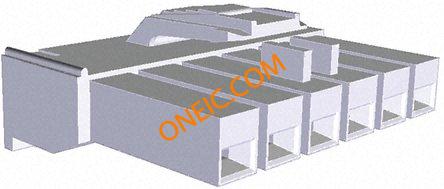

178483-1
| 制造商 | |
| 描述 | Conn Housing PL 6 POS 3.96mm Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG 6POS FREE HANGING Housing FH 6 way Rec Universal-Power Headers & Wire Housings PLUG 6P FREE HANGING Conn Housing PL 6 POS 3.96mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPlugLoose Piece3.96 mm Centerline, MatrixNumber of Positions = 6Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector HOUSINGFH6WAYRECU-P UP 3.96 6P PLUG HSG NATRL |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 300 V | 供电电压 | 600 |
| 输入电阻 | 1000 | 最大额定电流 | 7 |
机械参数
| 颜色 | Natural | 深度 | 19.3mm |
| 间距 | 3.96 mm | 宽度 | 9.65mm |
| 高度 | 9.7 mm [ .38 in ] | 长度 | 24.9mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 触头类型 | Female Socket | 柱间距 | 3.96 [.156] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | Plug | 插入件材料 | 铜合金 |
| 锁定特性 | Latch | 壳体材料 | Nylon |
| 包装数量 | Loose Piece | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 配接方向 | Without | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 兼容外壳尺寸（如TM-700等） | 接头组件 | 安装孔直径 | 带有 |
| 典型触点布局 | In-Line | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 178483 |
| 产品子类型 | Housing | 适用产品/相关产品 | Centerline Single-Row Universal Power Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | - 30 C to + 105 C |
文档与媒体
相关型号
