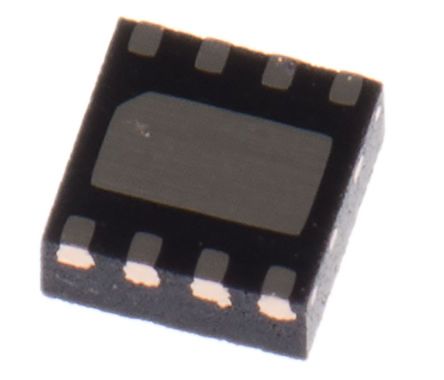

CSD17308Q3
| 制造商 | Texas Instruments Incorporated |
| 描述 | Trans MOSFET N-CH 30V 47A 8-Pin SON EP T/R MOSFET N-CH 30V 47A 8SON MOSFET 30V NCh NexFET Pwr MOSFET MOSFET, N CH, 30V, 47A, 8SON 30V N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 47 A, Vds=30 V, 8针 SON封装 |
| 分类 |
商业参数
| 商标名 | NexFET | 其他名称 | 296-27210-2 |
| 产品类别 | MOSFET | 标准包装数量 | Cut Tape |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Contains lead / RoHS compliant by exemption | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85412900 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| FET类型 | MOSFET N-Channel, Metal Oxide | 下降时间 | 2.3 ns |
| 最大栅源电压 Vgs | 10 V | FET特性 | Standard |
| 栅极电荷 | 3.9 nC | 最大功率 | 2.7W |
| 额定功率 | 2.7 W | 下降时间（典型） | 2.3 ns |
| 上升时间（典型） | 5.7 ns | 晶体管类型 | N-Channel |
| 首抽头延迟 | 9.9 ns | 元件数量 | 1 |
| Vgs(th)（最大）@ Id | 1.8V @ 250µA | 击穿电压 | 30 V |
| 阈值电压 | :1.3V | 最大额定电流 | Catalog |
| 导通电阻 RDS(On) | :0.0094ohm | 导通电阻 Rds(on) (最大) @ Id, Vgs | 10.3@8V mOhm |
| 最大功耗 | :2.7W | 传播延迟（最大） | 5.7 ns |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 30 V | 逻辑电压 - VIL, VIH | Yes |
| 导通电阻（最大） | 10.3@8V | 电流传输比（最小） | 37 S |
| 栅极电荷（Qg）（最大）@ Vgs | 5.1nC @ 4.5V | 峰值脉冲电流（8/20µs） | 78 |
| 开关时间（Ton, Toff）（最大） | 4.5 ns | 漏源电压（Vdss） | 30V |
| 峰值脉冲电流（10/1000µs） | 47 A | 栅极触发电压 Vgt (最大) | 10 V |
| 漏极电流（Idss）@ Vds（Vgs=0） | 47 A | 输入电容（Ciss）（最大）@ Vds | 700pF @ 15V |
| 连续漏极电流（Id）@ 25°C | 13A (Ta), 47A (Tc) | ||
机械参数
| 宽度 | 3.3 | 重量 | 0.0035 |
| 包装方式 | Tape and Reel | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SON EP | 冷却的封装 | SON EP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.3 |
| 包装数量 | SON EP | 位数 | 8 |
| 外壳尺寸-插件 | 1 | 供应商器件封装 | 8-SON |
产品信息
| 类型 | Power MOSFET | 系列 | CSD17308Q3 |
| 极性 | N | 软件 | SLPS262A |
| 通道类型 | Enhancement | 配置 | Single |
| 图案编号 | Y | 使用的IC/零件 | View |
| 其他规格 | 0.8 | 印刷电路板数量 | 8 |
环境参数
| 测试温度 | -55 to 150 | 工作温度 | -55 to 150 °C |
文档与媒体
相关型号
CSD17308Q3
texas instruments
Trans MOSFET N-CH 30V 47A 8-Pin SON EP T/R MOSFET N-CH 30V 47A 8SON MOSFET 30V NCh NexFET Pwr MOSFET MOSFET, N CH, 30V, 47A, 8SON 30V N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 47 A, Vds=30 V, 8针 SON封装
MSP430G2001IPW14R
texas instruments
MCU 16-bit MSP430 RISC 0.5KB Flash 2.5V/3.3V 14-Pin TSSOP T/R IC MCU 16BIT 512B FLASH 14TSSOP 16-bit Microcontrollers - MCU Mixed Signal Micro controller MCU 16-bit MSP430 MSP430 RISC 0.5KB Flash 2.5V/3.3V 14-Pin TSSOP T/R IC, 16BIT MCU, MSP430G2, 16MHZ, 14-TSSOP MCU, 16BIT, MSP430, 16MHZ, TSSOP-14 MSP430G2x01, MSP430G2x11 Mixed Signal Microcontroller

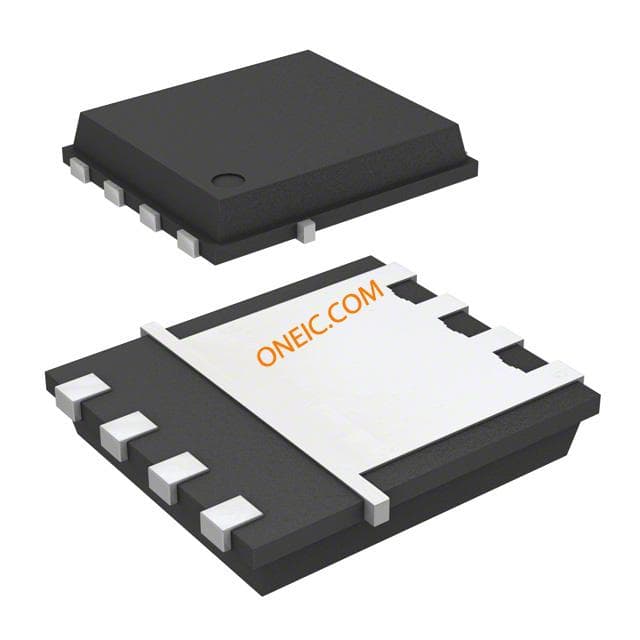

CSD17307Q5A
texas instruments
Trans MOSFET N-CH 30V 14A 8-Pin SON EP T/R MOSFET N-CH 30V 73A 8SON MOSFET 30V N Channel NexFET Power MOSFET MOSFET, N CH, 30V, 73A, 8SON 30V N Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 73 A, Vds=30 V, 8针 SON封装
INA214AIDCKT
texas instruments
SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R IC CURRENT MONITOR 1% SC70-6 INA214AIDCKT, Current Sensing Amplifier Single 6-Pin SC-70 Current & Power Monitors & Regulators Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt IC, CURR SHUNT MON 100V/VSC70-6 Supervisor Integrated Circuit; 2.7÷26VDC; SC70-6 26-V, Bi-Directional, Zero-Drift, High Accuracy, Low-/High-Side, Voltage Out Current Shunt Monitor Current Sense Amplifier IC SC-70-6, INA214, INA214AIDCKT, Texas Instruments 单 电流感应放大器, 6针 SC-70封装 Current Sense Amplifiers Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt
LM3478MA/NOPB
Texas Instruments Incorporated
Buy now, ships today. LM3478MA/NOPB - Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC from Texas Instruments. View datasheets, pricing and availability from DigiKey now!
80-4-5
Illinois Capacitor, Inc.
Solder Removal .110 BLUE Chemical,DesolderingBraid,Rosin,EsdSafe,5FootBobbin,.110Inch/2.8mmBlue Soder-Wick® Rosin SD .110" ESD 5' Spool Desoldering braids 2.8 mm, 80-4-5, Chemtronics
LM5118MH/NOPB
Texas Instruments Incorporated
Buy now, ships today. LM5118MH/NOPB - Buck, Buck-Boost Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 20-HTSSOP from Texas Instruments. View datasheets, pricing and availability from DigiKey now!
TPS54231D
texas instruments
Conv DC-DC Single Step Down 3.5V to 28V 8-Pin SOIC Tube IC REG BUCK ADJ 2A 8SOIC TPS54231D, Switching Regulator, Buck Controller, 2A, Adjustable, 0.8V min., 570kHz, 8-Pin SOIC Voltage Regulators - Switching Regulators 28V,2A Current Mode Nonsynch Buck IC, STEP-DN SWIFT CONV 2A 8-SOIC 3.5 to 28V Input, 2A, 570kHz Step-Down Converter with Eco-mode™ Texas Instruments 降压 开关稳压器, 2A, 可调输出, 最低 0.8 V, 570 kHz, 8针 SOIC封装 Switching Voltage Regulators 28V,2A Current Mode Nonsynch Buck
LM5088MH-1/NOPB
Texas Instruments Incorporated
Buy now, ships today. LM5088MH-1/NOPB - Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-HTSSOP from Texas Instruments. View datasheets, pricing and availability from DigiKey now!
LM3481MM/NOPB
Texas Instruments Incorporated
Buy now, ships today. LM3481MM/NOPB - Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-VSSOP from Texas Instruments. View datasheets, pricing and availability from DigiKey now!

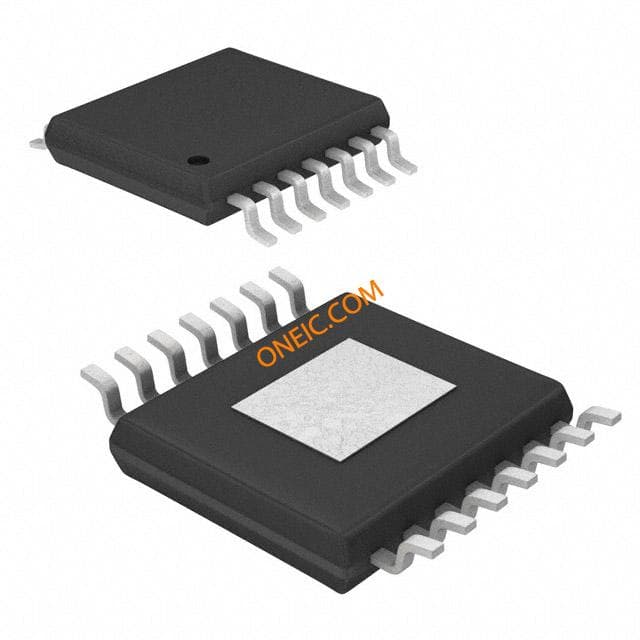

LM3150MHE/NOPB
