点击放大查看

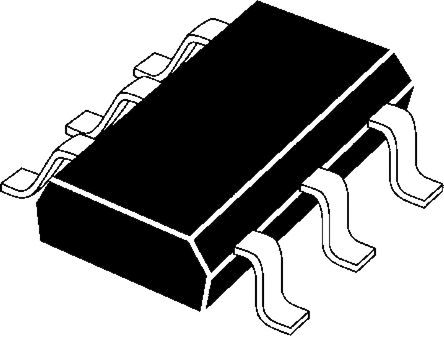

INA214AIDCKT
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R IC CURRENT MONITOR 1% SC70-6 INA214AIDCKT, Current Sensing Amplifier Single 6-Pin SC-70 Current & Power Monitors & Regulators Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt IC, CURR SHUNT MON 100V/VSC70-6 Supervisor Integrated Circuit; 2.7÷26VDC; SC70-6 26-V, Bi-Directional, Zero-Drift, High Accuracy, Low-/High-Side, Voltage Out Current Shunt Monitor Current Sense Amplifier IC SC-70-6, INA214, INA214AIDCKT, Texas Instruments 单 电流感应放大器, 6针 SC-70封装 Current Sense Amplifiers Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt |
| 分类 |
商业参数
| 产品 | Current Monitors | 其他名称 | 296-23422-2 |
| 产品类别 | Current & Power Monitors & Regulators | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 250 | 标准封装名称 | SOT-323 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 40 dB | 电源抑制比 | 140 dB |
| 精度 | ±1% | 频率 | 14kHz |
| 压摆率 | :0.04V/µs | 输出类型 | No |
| 输入功率 | Single | 额定电压 | 2.7 V |
| 共模抑制比、电源抑制比（典型） | 105dB | 输出电流 | 100 uA |
| 供电电流 | 65µA | 供电电压 | 2.7 V |
| 供电类型 | Single | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 35000 nA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 40(Typ) dB | 增益带宽积 | 0.014 MHz |
| 轨到轨工作 | No | 最小供电电压 | 26 V |
| 静态电流 (Iq) | 0.115 | 输入偏置电流（最大） | 35@5V |
| 供电电压 (Vcc/Vdd) | 26 | 电源电压范围（典型） | Not Required V |
| 输入失调电压（最大） | 60 | 共模瞬态抗扰度（最小） | Extended |
机械参数
| 宽度 | 1.25mm | 高度 | 0.9mm |
| 长度 | 2mm | 重量 | 0.000088 oz |
| 带宽 | :14kHz | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | -3dB带宽 | 0.03 |
| 安装样式 | SMD/SMT | 引脚数 | :6 |
| 封装形式 | 6SC-70 | 冷却的封装 | SC-70 |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 2.15(Max) |
| 包装数量 | SC-70 | 尺寸/外形 | 2 x 1.25 x 0.9mm |
| 位数 | 6 | 外壳尺寸-插件 | 1(Max) |
| 供应商器件封装 | SC-70-6 | ||
产品信息
| SPG | 117 | 类型 | Current Shunt Monitor |
| 系列 | INA214 | 已删除 | Compliant |
| 产品特性 | high or low side measurement | 功能 | Current Monitor |
| 软件 | SBOS437G | 基本单元 | :214 |
| 图案编号 | Y | 感应方式 | High/Low-Side |
| 单元数量 | 1 | 功能框图 | alt_sbos437g.gif |
| 使用的IC/零件 | bidirectional, current shunt, monitor, zero drift | 印刷电路板数量 | 6 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
