点击放大查看
521120-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN RCPT HSG 1POS .250 RED Positive Lock Connectors |
| 分类 |
商业参数
| 标准包装数量 | 10,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Red | 材料（通用） | Nylon 6/6 |
| 按键颜色 | None | 插片宽度 | 6.35 [.250] |
| 安装类型 | Free Hanging (In-Line) | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器样式 | Straight |
| 外形（宽 x 高） | Standard | 总长度 | Mark III |
| 包装数量 | Loose Piece | 位数 | 1 |
产品信息
| 备注 | Contacts Not Provided | 样式 | Housing |
| 连接器性别 | Female, Receptacle | 编码、键控 | No |
| 产品子类型 | Receptacle Housing | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
相关型号
63442-1
te connectivity / amp
Quick Disconnect Terminal 14-18AWG F Tin Strip Positive Lock Connectors CONN RCPT 18-14AWG .250 TIN Headers & Wire Housings 250 POS LOCK REC 250 POS LOCK REC 18-14 016TPBR 250 POS LOCK REC 18-14 016TPBR Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONN QC RCPT 14-18AWG 0.250 PL 250 TERMINAL REC 18-14 AWG TPBR
63239-1
te connectivity / amp
Quick Disconnect Terminal 10-12AWG RCP 24.87mm 7.6mm Tin Strip on Reel Automotive Connectors 250 POSI-L Positive Lock Connectors CONN RCPT POS LCK 10-12AWG .250 Quick Disconnect Terminal 10-12AWG RCP 24.87mm 7.6mm Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, POSITIVE LOCK 250 REC 12-10 AWG TPBR
170455-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Positive Lock Connectors CONN UNINS RCPT 14-18AWG 0.250 Posi Lock .250,Contact,Rcp,0.80-2.00mm² Headers & Wire Housings 250 POSTIVE-LK REC LP PosiLock.250,Contact,Rcp,0.80-2.00mm² TE Connectivity Positive Lock .250 系列 母 压接接线端子, 压接, 镀锡触点
170327-1
te connectivity / amp
Quick Disconnect Terminal 18-22AWG RCP 25.8mm 7.6mm Pre-Tin Strip Positive Lock Connectors TERM RCPT 22-18AWG CRIMP .250 Positive lock,receptacle,22-18awg,6.35mm Headers & Wire Housings 250 POS LOCK REC Positive Lock Connectors Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelock,receptacle,22-18awg,6.35mm TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 REC 22-18 AWG 0.4 X 19 PTPBR
170328-1
te connectivity / amp
Quick Disconnect Terminal 10-18AWG RCP 25.8mm 7.6mm Pre-Tin Strip Automotive Connectors RCPT 18-14 AWG .250 Positive Lock Connectors TERM RCPT 18-14AWG CRIMP .250 Receptacle contact, Positive Lock (REEL) Positive lock,receptacle,18-14awg,6.35mm Positive Lock Connectors Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelock,receptacle,18-14awg,6.35mm TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 REC 18-14 AWG 0.4 X 19.0 PRE-BR
170456-2
te connectivity / amp
Quick Disconnect Terminal 10-12AWG F 22.8mm 7.6mm Pre-Tin Strip Automotive Connectors POSITIVE LOCK REC Positive Lock Connectors CONN TAB RCPT 10-12AWG STR .250 Quick Disconnect Terminal 10-12AWG F 22.8mm 7.6mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 250 AM REC 12-10 0.40 X 21 PRE-TPBR

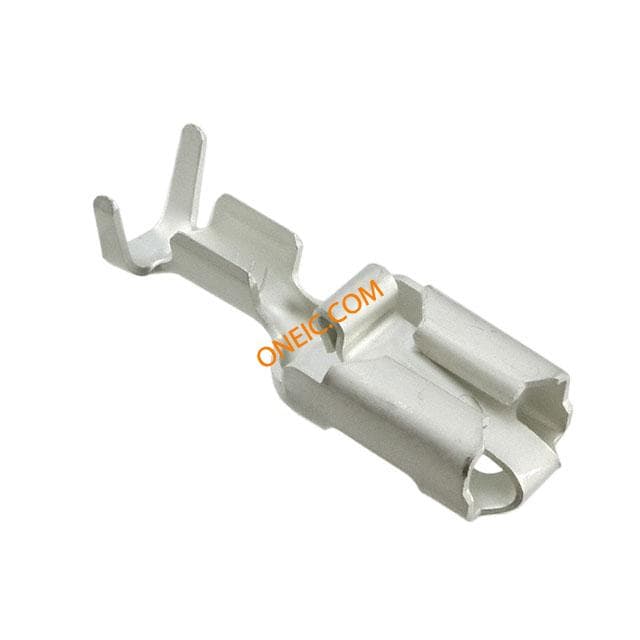

63812-1
