点击放大查看

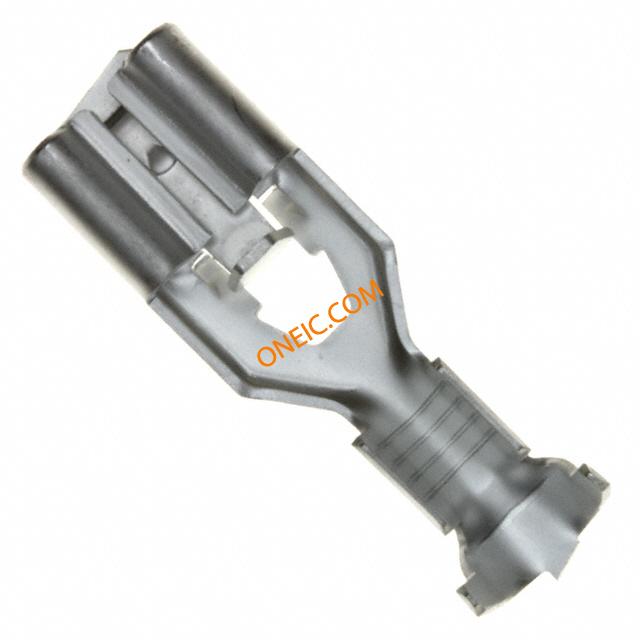

63239-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-12AWG RCP 24.87mm 7.6mm Tin Strip on Reel Automotive Connectors 250 POSI-L Positive Lock Connectors CONN RCPT POS LCK 10-12AWG .250 Quick Disconnect Terminal 10-12AWG RCP 24.87mm 7.6mm Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, POSITIVE LOCK 250 REC 12-10 AWG TPBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | 6,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Not Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Straight |
| 释放力 | .7 – 10.2 | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | No | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 普通 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | Mark II | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | Crimp |
| 适用端子尺寸 | 3.81 – 5.08 mm [ .15 – .2 in ] | 绝缘直径 | 3.81-5.08 [.150-.200] |
| 绝缘材料 - 类型 | No | 总厚度 | .46 mm [ .018 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 12-10 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 外径-未扩张 | 5.08 mm [ .2 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 632 |
| 编码、键控 | No | 产品子类型 | Receptacle |
