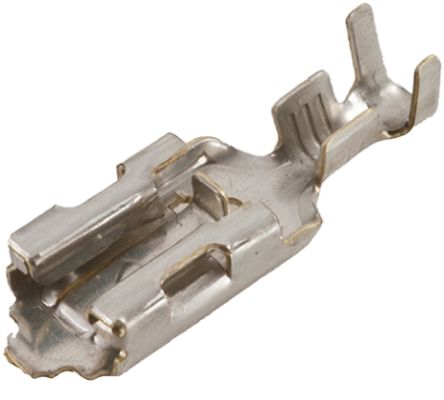

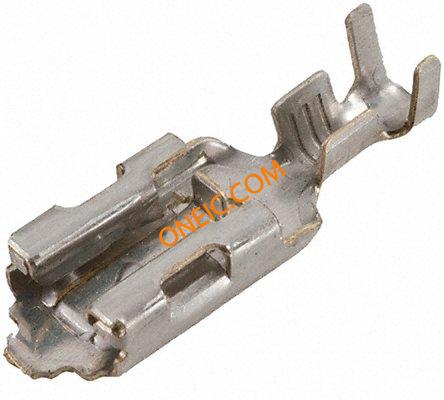

170454-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG F 22.8mm 7.6mm Pre-Tin Strip Automotive Connectors 250POSITIVE LOCK REC Positive Lock Connectors CONN RCPT 18-14AWG TIN Contact, Pos Lock, Female, 6.35 x 0.81 Receptacle contact, Positive Lock (REEL) Quick Disconnect Terminal 14-18AWG F 22.8mm 7.6mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 AM REC 18-14 0.40 X 21 PRE-TPBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A101743CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | 9,000 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | In Transition | UL等级 | 已获认证 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | ||
机械参数
| 颜色 | Not Required | 深度 | 7.6 mm |
| 表面处理 | Pre-Tin | 长度 | 22.8 mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Not Insulated |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Straight |
| 释放力 | .5 – 3 | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 安装样式 | Wire |
| 壳体镀层 | Pre-Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 低 | 操作力 | 4.9 – 29.4 |
| 触头材料 | Brass | 总长度 | Mark II |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | Crimp | 适用端子尺寸 | 2.2 – 3.4 mm [ .087 – .134 in ] |
| 绝缘直径 | 2.20-3.40 [.086-.134] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 18-14 | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 外径-未扩张 | 3.4 mm [ .134 in ] | ||
产品信息
| 备注 | Heavy Duty | 连接器性别 | Female |
| 系列 | 250 | 编码、键控 | No |
| 产品子类型 | Receptacle | ||
环境参数
| 工作温度 | -40 – 105 | ||
文档与媒体
