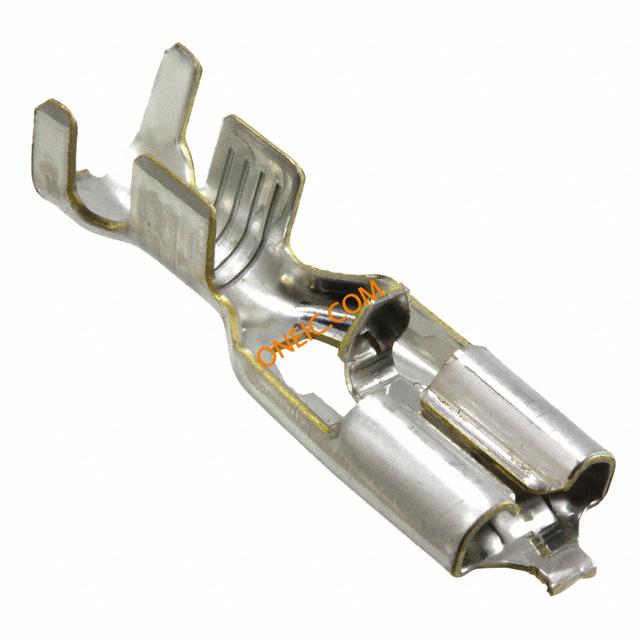

170329-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-14AWG F 25.8mm 7.6mm Pre-Tin Strip Positive Lock Connectors CONN UNINS RCPT 10-15AWG 0.250 Receptacle contact, Positive Lock (REEL) Terminals POS-LOK RECEPTACLE Quick Disconnect Terminal 10-14AWG F 25.8mm 7.6mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 1.60-6.00² [15-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelock,receptacle,15-10awg,6.35mm TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 REC 15-10 AWG 0.4 X 19.0 PTPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107097CT |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | Pre-Tin | 长度 | 25.8mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 导线线规 | 10-15 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 释放力 | .7 – 10.2 |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 6mm² | 电缆材料 | Stranded |
| 连接器类型 | Power Connector | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | Mark II | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | Crimp |
| 第一触头极性 | Socket | 适用端子尺寸 | 3.81 – 5.08 mm [ .118 – .2 in ] |
| 绝缘直径 | 3.00-5.10 [.118-.200] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 10AWG | 线规或范围 - mm² | 1.60-6.00² [15-10] |
| 外径-未扩张 | 5.08 mm [ .2 in ] | ||
产品信息
| 备注 | Air-feed Applicator should be used. | 连接器性别 | Female |
| 系列 | 250 | 编码、键控 | No |
| 制造商全称 | MKII250Series | 产品子类型 | Receptacle |
环境参数
| 工作温度 | -40 – 105 | ||
文档与媒体
