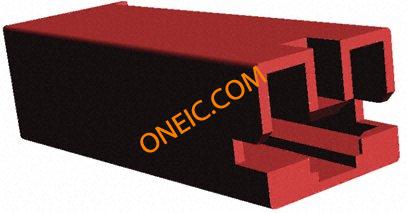

点击放大查看
172076-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive Lock,Housing,plug,1way Terminals 250 POSITIE 1P RED Positive Lock Connectors Product Highlights:ConnectorNot PreloadedConnector Style = PlugAccepts Contact Gender = ReceptacleMating Area Interface Dimensions = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PositiveLock,Housing,plug,1way TE Connectivity Positive Lock Mark II 系列 1 触点 尼龙 压接端子外壳 PL MKII 250 REC HSG 1P NYLON RED |
| 分类 |
商业参数
| 产品 | Terminal Housings | 标准包装规格 | 1,000 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Red | 深度 | 27.8mm |
| 宽度 | 8.3mm | 长度 | 10mm |
| 材料（通用） | Nylon | 按键颜色 | None |
| 包装方式 | 袋 | 插片宽度 | 6.35 [.250] |
| 壳体颜色 | 红色 | 外壳样式 | With |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 6.35 mm |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | 插头 | 排数 | 1 |
| 封装形式 | Receptacle Housing | 连接器样式 | Straight |
| 连接器用途 | Wire/Cable | 增强颜色 | With |
| 壳体材料 | Nylon | 总长度 | Mark II |
| 包装数量 | 1000 | 主要材料 | 尼龙 |
| 端接样式 | Crimp | 触点数 | 1 |
| 绝缘材料 - 类型 | Yes | 位数 | 1 |
| 触点镀层厚度 - 柱 | 6.35mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | Mark II | 极性 | 是 |
| 编码、键控 | No | 产品子类型 | Receptacle Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
