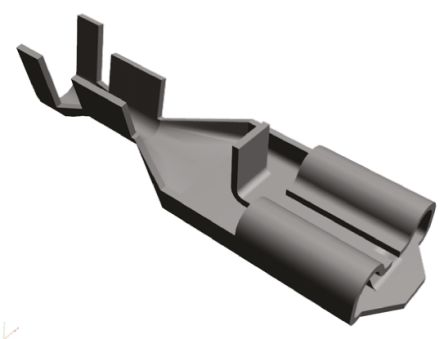

170328-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-18AWG RCP 25.8mm 7.6mm Pre-Tin Strip Automotive Connectors RCPT 18-14 AWG .250 Positive Lock Connectors TERM RCPT 18-14AWG CRIMP .250 Receptacle contact, Positive Lock (REEL) Positive lock,receptacle,18-14awg,6.35mm Positive Lock Connectors Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelock,receptacle,18-14awg,6.35mm TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 REC 18-14 AWG 0.4 X 19.0 PRE-BR |
| 分类 |
商业参数
| 产品 | Terminals | 其他名称 | A107096CT |
| 标准包装规格 | 3,500 | 零件号别名 | 8-52949-1 |
| 产品类别 | Automotive Connectors | 标准包装数量 | 3,500 |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | 开关功能 | 快速断开, 快速断开 |
机械参数
| 表面处理 | Pre-Tin | 长度 | 25.8mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Insulated |
| 插片长度 | 0.307" (7.80mm) | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 2mm² | 电缆材料 | Stranded |
| 连接器类型 | Power Connector | 接触镀层 | Tin |
| 安装样式 | Wire | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 总长度 | Mark II |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | Crimp | 适用端子尺寸 | 2.2 – 3.4 mm [ .086 – .134 in ] |
| 绝缘直径 | 2.20-3.40 [.086-.134] | 绝缘材料 - 类型 | No |
| 位数 | 1 | 总厚度 | .41 mm [ .016 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 18-14 |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 外径-未扩张 | 3.4 mm [ .133 in ] |
产品信息
| 备注 | Air-feed Applicator should be used. | 连接器性别 | Female |
| 系列 | 250 | 编码、键控 | No |
| 制造商全称 | MKII250Series | 产品子类型 | Receptacle |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
