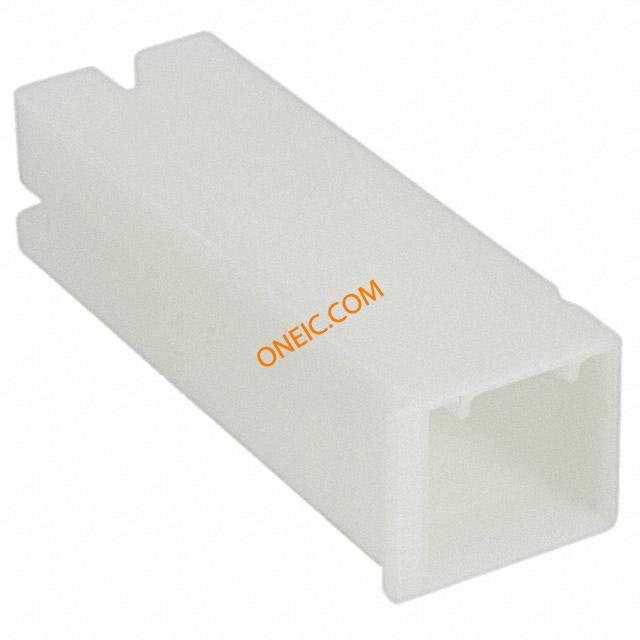

2-172076-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Barrier Terminal Blocks 250 POSITIVE LOCK REC 1P Positive Lock Connectors CONN RCPT HOUSING 1POS .250 TAB Positive lock plug housing,1 way,6.35mm Terminals 250 POSITIVE LOCK REC 1P Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IIReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelockplughousing,1way,6.35mm TE Connectivity Positive Lock Mark II 系列 1 触点 尼龙 压接端子外壳 POSITIVE LOCK 250 HOUSING RECEPTACLE |
| 分类 |
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Natural | 深度 | 27.8mm |
| 宽度 | 8.3mm | 长度 | 10mm |
| 材料（通用） | Nylon | 按键颜色 | None |
| 包装方式 | 袋 | 插片宽度 | 6.35 [.250] |
| 壳体颜色 | 土黄色 | 绝缘类型 | Not Insulated |
| 外壳样式 | With | 安装类型 | Straight |
| 螺柱/焊片尺寸 | 6.35 mm | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | 插头 |
| 排数 | 1 | 封装形式 | Receptacle Housing |
| 连接器样式 | Straight | 增强颜色 | With |
| 壳体材料 | Nylon | 总长度 | Mark II |
| 包装数量 | 1000 | 主要材料 | 尼龙 |
| 端接样式 | 直式 | 触点数 | 1 |
| 绝缘材料 - 类型 | Yes | 位数 | 1 |
| 触点镀层厚度 - 柱 | 6.35mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | Mark II | 极性 | 是 |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 产品子类型 | Receptacle Housing | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
