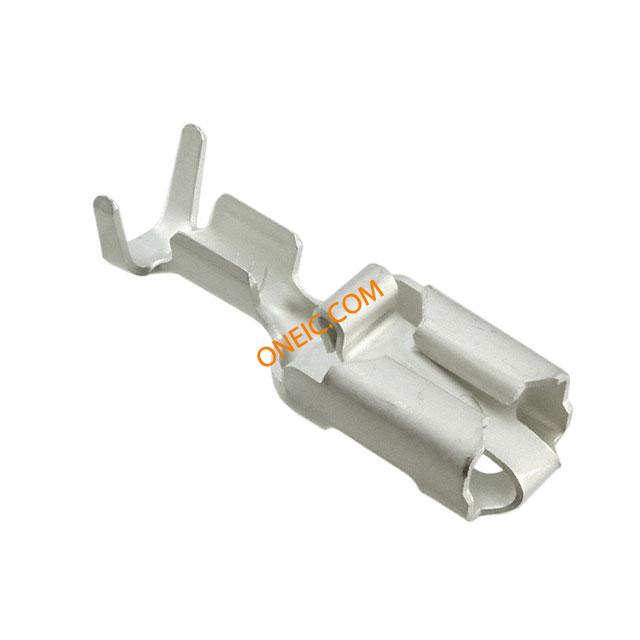

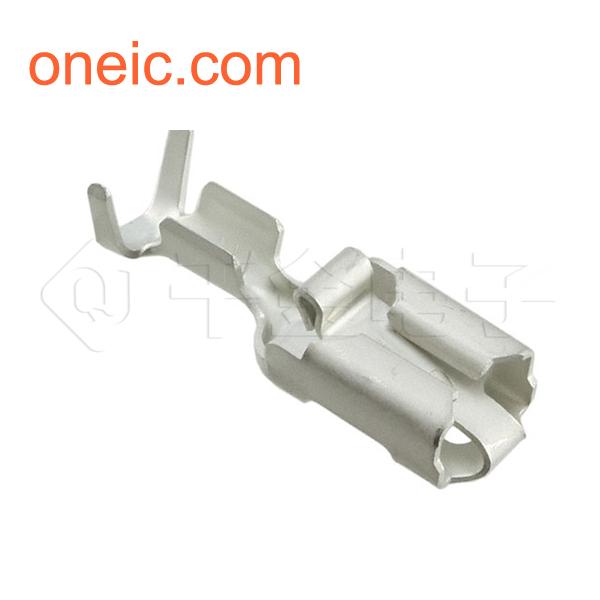

63812-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 22.5mm 7.44mm Tin Strip on Reel Positive Lock Connectors REC 250 POSLOK 18-14 0157TPBR Posi Lock .250,Contact,Rcp,0.80-2.00mm² Headers & Wire Housings REC .25 POSLOK 18-14 Quick Disconnect Terminal 14-18AWG RCP 22.5mm 7.44mm Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, TERMINAL, CRIMP, FEMALE 0.25IN PosiLock.250,Contact,Rcp,0.80-2.00mm² TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 TERMINAL REC 18-14 AWG TPBR |
| 分类 |
商业参数
| 其他名称 | A104042CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 1,500 | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 7.44 mm |
| 表面处理 | Tin | 长度 | 22.5mm |
| 重量 | 0.000001 | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Non-Insulated |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 重量（g） | 11.7 | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | :6.35mm x 0.81mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 厚度（最大） | 0.41 [0.016] | 触头材料 | Brass |
| 绝缘颜色 | :(Not Available) | 总长度 | Mark I |
| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 绝缘直径 | 3.43-4.95 [.135-.195] |
| 绝缘材料 - 材质 | :(Not Available) | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 名称 | 端子 | 备注 | Only use with Type A Housings P/N 154719, or 154719-1. This receptacle has a sm |
| 单位 | PCS | 连接器性别 | Female |
| 系列 | .250 | 数量 | 6000.0 |
| 编码、键控 | No | 制造商全称 | MKI250Series |
| 产品子类型 | Receptacle | 制造国家 | 美国 |
| 设备部件号 | 63812-1.pdf | 最小起订量 | 1 |
