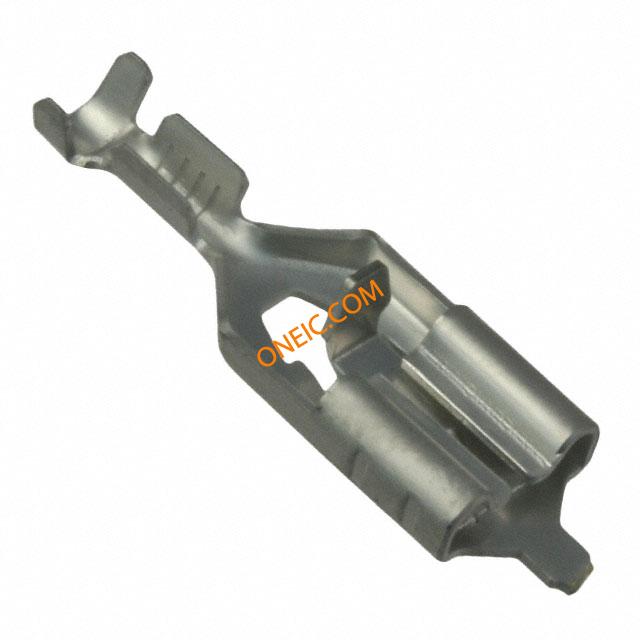

63119-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 24.15mm 7.6mm Tin Strip Automotive Connectors RCPT 18-22 AWG .250 Positive Lock Connectors CONN RECEPT STR 18-22 AWG .250 CONN RCPT POS LCK 18-22AWG .250 Quick Disconnect Terminal 18-22AWG F 24.15mm 7.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, 22-18 AWG Straight Receptacle Positive Lock Connector POSITIVE LOCK 250 REC 22-18 AWG TPBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | 6,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.255" (6.48mm) |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 引脚间距 | 0.255" (6.48mm) | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Standard |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 总长度 | Mark II |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | 母端 | 适用端子尺寸 | 1.52 – 2.54 mm [ .06 – .1 in ] |
| 绝缘直径 | 1.52-2.54 [.060-.100] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 外径-未扩张 | 2.54 mm [ .1 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | Mark II, AMP |
| 编码、键控 | No | 产品子类型 | Receptacle |
