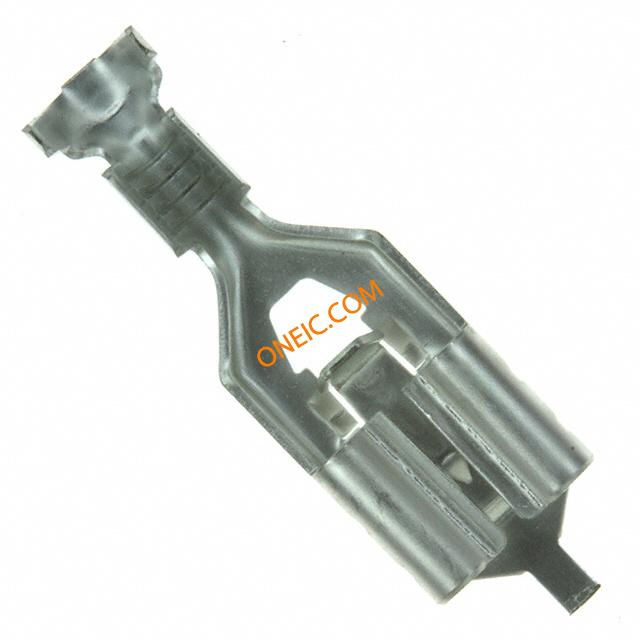

63097-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 24.15mm 7.6mm Tin Strip Automotive Connectors RECP .078 DIA PIN Positive Lock Connectors CONN RECEPT 14-18 AWG TIN CRIMP CONN RCPT POS LCK 14-18AWG .250 Posi Lock .250,Contact,Rcp,0.80-2.00mm² Quick Disconnect Terminal 14-18AWG RCP 24.15mm 7.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONTACT, CRIMP, RECEPTACLE, 18-14AWG POSITIVELOKECONSTR,250POSLOCKREC18-14016TPBR 18-14 AWG Wire/Cable Straight Socket Positive Lock Connector TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 RECEPTACLE 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | 6,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 7.6 mm |
| 表面处理 | Tin | 长度 | 22.5 mm |
| 重量 | 0.005 | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Not Insulated |
| 插片长度 | 0.255" (6.48mm) | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Straight | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 安装样式 | Wire |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Brass | 总长度 | Mark II |
| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 接触件端接 | :Crimp |
| 绝缘直径 | 2.29-3.94 [.090-.155] | 线规或范围 - AWG | 18-14 |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 连接器性别 | Female | 系列 | :Positive Lock MARK II |
| 编码、键控 | No | 产品子类型 | Receptacle |
| 适用产品/相关产品 | :Positive Lock Connectors | ||
