点击放大查看

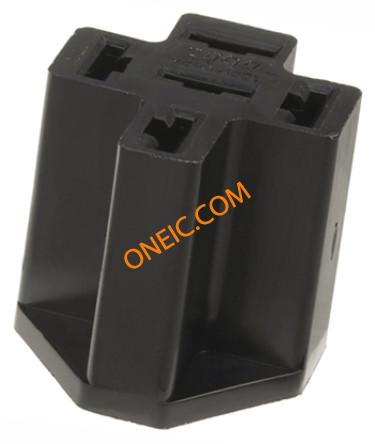

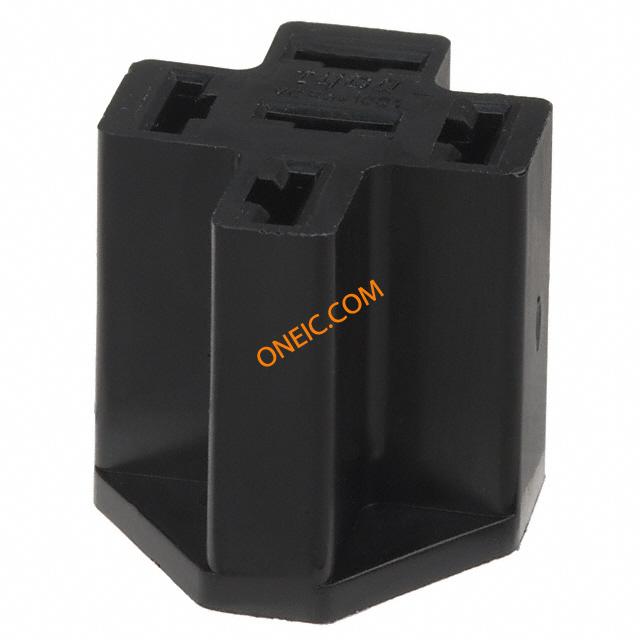

VCF4-1001
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS Crimp ST Relay Sockets & Hardware Wiring harness style Connector for VF4 HOUSING CONN 5POS FOR VF4 RELAY Socket, Relay; 1 POLE, PCB QUICK CONNECT Conn Housing RCP 5 POS Crimp ST Product Highlights:PCB SocketVTF SeriesNumber of Poles = 1Terminal Type = Quick-ConnectWithout Grounding Provision RELAY SOCKET Socket,Relay;1POLE,PCB,QUICKCONNECT VCF4-1001=CONNECTOR,HOUSING |
| 分类 |
商业参数
| 交货时间 | 45 Days | 子类别 | Connector Discrete Wire Housing |
| 零件号别名 | 3-1393310-7 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 极数 | 1 | ||
机械参数
| 重量 | 0.005 | 安装类型 | Straight |
| 连接器类型 | :Quick Connect | 引脚数 | :5 |
| 端接样式 | Quick Connect | 触点数 | 5 |
| 接触件端接 | :Quick Connect | 位数 | 5 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | VTF | 附件类型 | Socket |
| 行业别名 | 3-1393310-7, VCF4-1001 | 应用细节 | Ignition lock, Lamp load, Cooling fan, Exhaust emission control |
| 有铅工艺兼容 | :No | 适用产品/相关产品 | VF4-1 and VF4-4 Relays |
环境参数
| 测试温度 | :No | ||
文档与媒体
相关型号
60249-1
te connectivity / amp
Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Strip Terminals .250 REC 16-12 AWG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 12-16 AWG BRASS CONN RECEPT FAST AWG 12-16 BRASS Receptacle, FASTIN-FASTON 250, 16-12 AWG Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = (2) 1.25-1.40; [(2) 16] mm [AWG], 1.25-3.00² [16-12] mm [AWG]Insulation Diameter = (2) 3.30 [.130] Max. mm [in], 4.06-5.33 [.160-.210] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL FEMALE DISCONNECT 0.81MM TAB, CRIMP Contact,Receptacle;.250FF;16-12AWG;BR FF 250 REC 16-12AWG BR
42281-1
te connectivity / amp
Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Strip Terminals .25 FF RPT 18-14 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST .250 14-18 AWG FASTON, female, 6.35x0.81 Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79-4.32 [.110-.170] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on RECEPTACLE,FASTIN-FASTON,.250,18-14AWG,.016 TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm FF 250 REC 18-14AWG BR

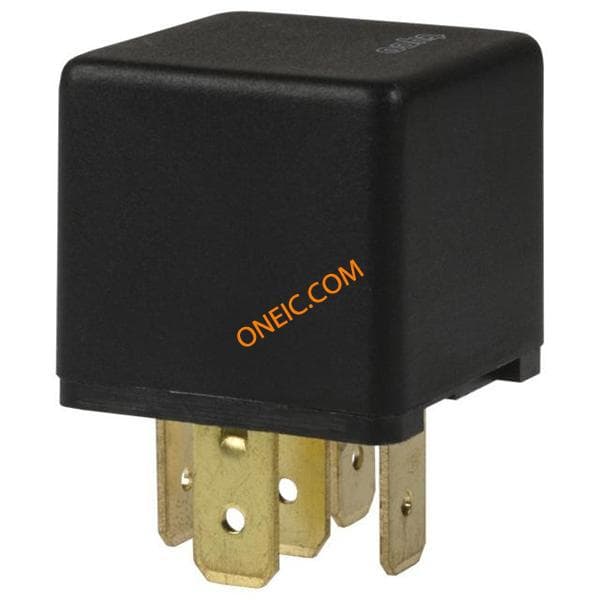

1432785-1
te connectivity / p&b
Electromechanical Relay SPDT 90(NO)/30(NC)A 12VDC 90Ohm Plug-In Automotive Relays SPDT QC 30A 12VDC Mini-ISO General Purpose / Industrial Relays SPDT QC 30A 12VDC Mini-ISO RELAY AUTOMOTIVE SPDT 30A 12V Relay,MINI-ISO,PI,12V,FormC,AgSnO Electromechanical Relay SPDT 120(NO)/45(NC)A 12VDC 90Ohm Plug-In AUTOMOTIVE RELAY, SPDT, 12VDC, 30A TE Connectivity 单刀双掷 插入式 非闭锁继电器, 12V
1432786-1
te connectivity / p&b
Conn Power 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Automotive Relays SPDT QC 12VDC W/RES Mini-ISO General Purpose / Industrial Relays SPDT QC 12VDC W/RES Mini-ISO RELAY AUTOMOTIVE SPDT 30A 12V Relay,MINI-ISO,PI,12V,FormC,AgSnO,Resist AUTOMOTIVE RELAY, SPDT, 12VDC, 30A Relay,MINI-ISO,PI,12V,FormC,AgSnO,Resistor TE Connectivity 单刀双掷 插入式 非闭锁继电器, 12V
1432790-1
te connectivity / p&b
Electromechanical Relay SPDT 90(NO)/30(NC)A 12VDC 90Ohm Plug-In Automotive Relays SPDT 12VDC Mini ISO General Purpose / Industrial Relays SPDT 12VDC Mini ISO RELAY AUTOMOTIVE SPDT 30A 12V RELAY, MINI-ISO, PI, 12V, FORM C, AGSNO RELAY, SPDT, 12VDC, 30A RELAY,MINI-ISO,PI,12V,FORMC,AGSNO,DIODE 30 A 12 VDC 1 Form C SPDT Plug In Quick Connect Automotive Relay TE Connectivity 单刀双掷 插入式 非闭锁继电器, 12V

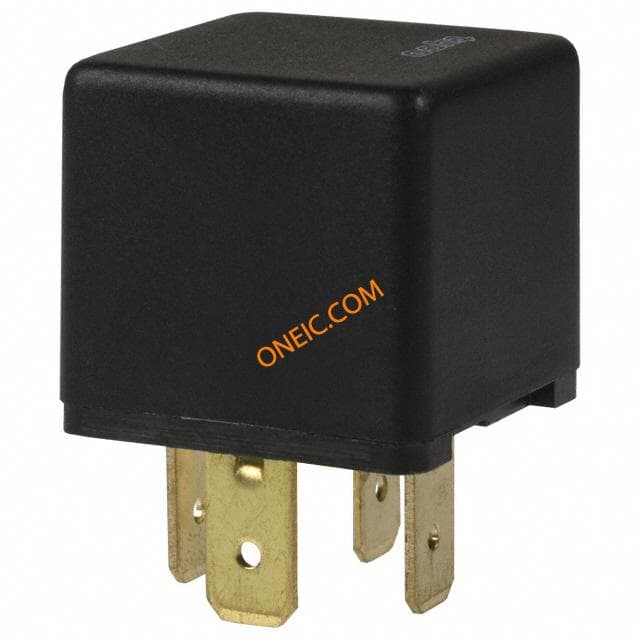

1432782-1
te connectivity / p&b
Electromechanical Relay SPST-NO 35A 12VDC 90Ohm Plug-In Automotive Relays SPST QC 12VDC Mini-ISO General Purpose / Industrial Relays SPST QC 12VDC Mini-ISO RELAY AUTOMOTIVE SPST 30A 12V Relay, MINI-ISO, 12V, Form A, AgSnO AUTOMOTIVE RELAY, SPST-NO, 12VDC, 30A Relay,MINI-ISO,12V,FormA,AgSnO TE Connectivity 单极常开 插入式 非闭锁继电器, 12V

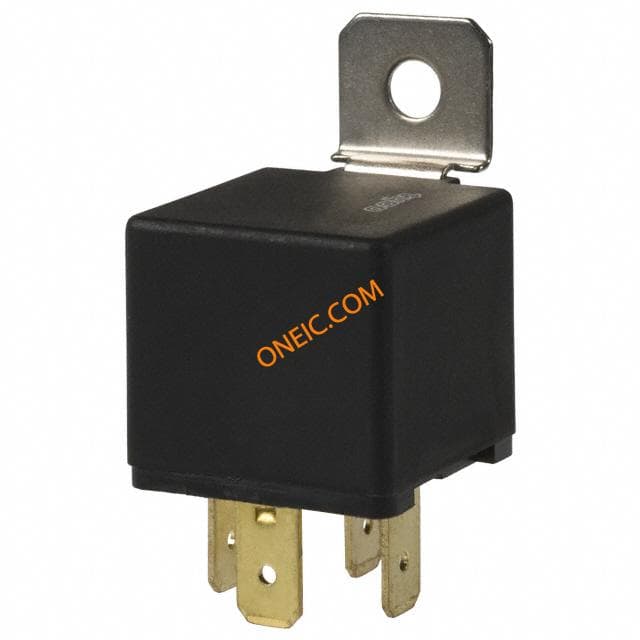

1432772-1
