点击放大查看

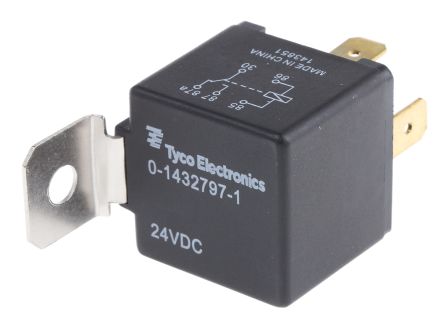

1432797-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay SPDT 35(NO)/20(NC)A 24VDC 360Ohm Plug-In Automotive Relays MINI-ISO, PI, 24V, FORM C, AgSnO,BRACKET EC Mini Relays RELAY AUTOMOTIVE SPDT 30A 24V MINI-ISO,PI,24V,FormC,AgSnO,Bracket Search Keywords:motor, vehicles, Rear window, seat heating, Wiper, indicator control, Active power management, Disconnection of power outlets, Security systems, Vehicle lighting, Lamp control, Sunroof motors, Immobilizers, Central doorlock, power, DC Motor Reversing Module RELAY, AUTOMOTIVE, SPDT, 24VDC, 30A TE Connectivity 单刀双掷 面板安装 非闭锁继电器, 24V |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Automotive Relays |
| 标准包装数量 | Bulk | 工厂包装数量 | 400 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85364190 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 线圈类型 | DC | 线圈功率 | 1.6 W |
| 线圈电流 | 66.7 mA | 释放时间 | 5ms |
| 电流比 | 35/20 | 额定功率 | No |
| 额定电压 | 14VDC | 线圈电阻 | 360 Ohm |
| 供电电压 | 24 V | 开关电压 | 28VDC - Nom |
| 标称电压 | 24.0 | Vgs(th)（最大）@ Id | 2.4 VDC |
| 最大额定电流 | 35(NO)/20(NC) A | 最大触点电流 | :40A |
| 直流开关电压 | 14V dc | 集电极-发射极饱和电压（最大）@ Vge, Ic | 15.6 VDC |
| 触点额定电流 | 30A | 供电电压 (Vcc/Vdd) | :16V |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | ||
机械参数
| 深度 | :26.5mm | 宽度 | 26.5 mm |
| 高度 | 26.5 mm | 长度 | 24.5 mm |
| 重量 | 0.032 | 包装方式 | Bulk |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :24.5mm |
| 安装类型 | Plug-In | 安装样式 | Socket |
| 引脚数 | 5 | 触头材料 | Silver Tin Oxide |
| 主要材料 | Silver Tin Oxide | 端接样式 | Plug In, QC - 0.250" (6.3mm) |
| 接触件端接 | Plug In | 典型触点布局 | SPDT |
产品信息
| 类型 | Automotive Relay | 功能 | Automotive |
| 继电器类型 | Automotive | 制造商全称 | Tyco Electronics |
| 产品子类型 | Plug-In Relays | 应用细节 | Automotive |
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 85°C |
相关型号

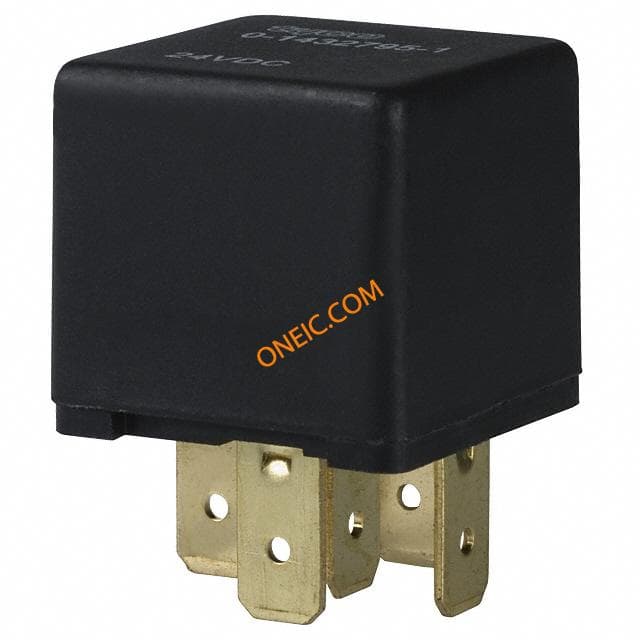

1432826-1
