点击放大查看

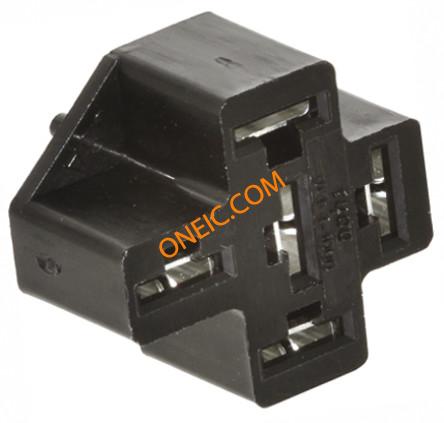

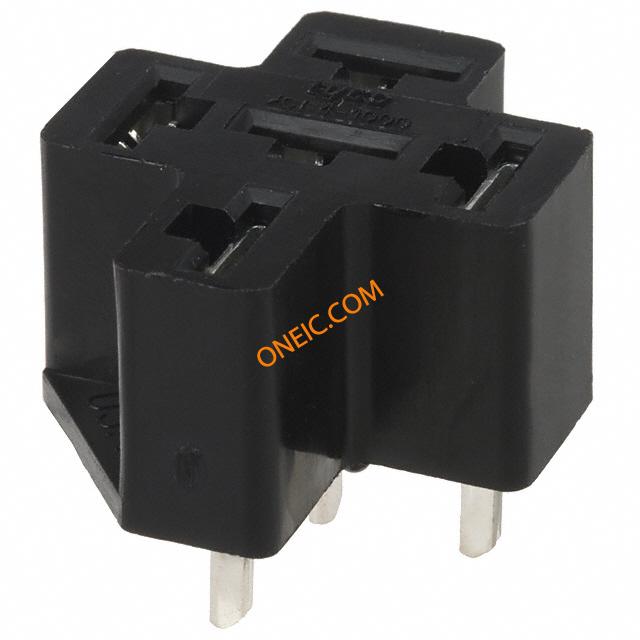

VCF4-1000
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Relay Socket SKT 5 POS Solder ST Thru-Hole Relay Sockets & Hardware PCB SOCKET CONN VF4 SOCKET RELAY PC MNT FOR VF4 SER Socket,Relay,PCB,VTFSeries,1Pole Conn Relay Socket SKT 5 POS Solder ST Thru-Hole Product Highlights:PCB SocketVTF SeriesNumber of Poles = 1Terminal Type = Quick-ConnectWithout Grounding Provision SOCKET,RELAY,PCB MNT Socket,Relay;PCB,VTFSeries,1Pole,Quick-Connect,w/oGroundingProvision VCF4-1000=FROM SEC |
| 分类 |
商业参数
| 交货时间 | 66 Days | 子类别 | Connector Socket |
| 零件号别名 | 1393310-3 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 零件状态 | 1393310-3 | ||
电气参数
| 极数 | 1 | ||
机械参数
| 重量 | 0.005 | 端接方式 | PCBPins |
| 安装类型 | Through Hole | 端子类型 | :Quick Connect |
| 连接器类型 | :Quick Connect | 引脚数 | :5 |
| 端接样式 | Quick Connect | 触点数 | 5 |
| 位数 | 5 | ||
产品信息
| 类型 | Socket | 系列 | VTF |
| 附件类型 | Socket | 行业别名 | 1393310-3, VCF4-1000 |
| 应用细节 | Ignition lock, Lamp load, Cooling fan, Exhaust emission control | 适用产品/相关产品 | VF4-1 and VF4-4 Relays |
