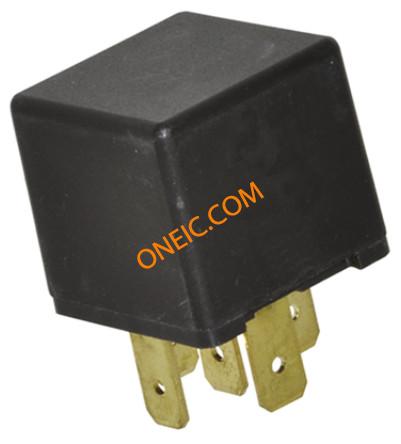

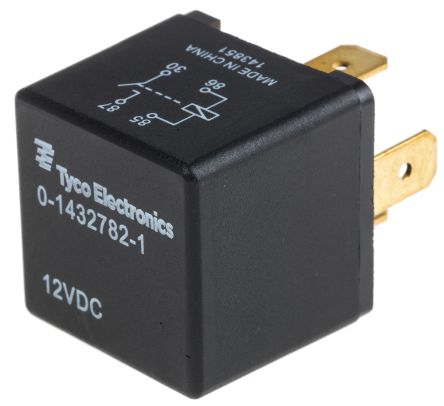

1432782-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay SPST-NO 35A 12VDC 90Ohm Plug-In Automotive Relays SPST QC 12VDC Mini-ISO General Purpose / Industrial Relays SPST QC 12VDC Mini-ISO RELAY AUTOMOTIVE SPST 30A 12V Relay, MINI-ISO, 12V, Form A, AgSnO AUTOMOTIVE RELAY, SPST-NO, 12VDC, 30A Relay,MINI-ISO,12V,FormA,AgSnO TE Connectivity 单极常开 插入式 非闭锁继电器, 12V |
| 分类 |
商业参数
| 产品类别 | Automotive Relays | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
| 抗辐射加固 | No | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.6 W |
| 线圈电流 | 133.3 mA | 线圈电压 | 12V |
| 释放时间 | 5ms | 可见输出 | No |
| 额定电压 | 12 V | 线圈电阻 | 90 Ohm |
| 供电电压 | 12 VDC | 开关电压 | 14VDC - Nom |
| Vgs(th)（最大）@ Id | 1.2 VDC | 二极管配置 | No |
| 最大额定电流 | 35 A | 最大触点电流 | :40A |
| 直流开关电压 | 14V dc | 集电极-发射极饱和电压（最大）@ Vge, Ic | 7.8 VDC |
| 触点额定电流 | 30A | 供电电压 (Vcc/Vdd) | :16V |
| 直流反向电压（Vr）（最大） | 12 V | 高侧电压（自举）最大 | 7.8VDC |
| 驱动电压（最大Rds On，最小Rds On） | 12VDC | ||
机械参数
| 密封 | Unsealed | 深度 | 26.5 mm |
| 高度 | 36 mm | 重量 | 0.027 |
| 包装方式 | Bulk | 触点形式 | SPST |
| 高度（最大） | :24.5mm | 安装类型 | Plug-In |
| 安装样式 | Socket | 引脚数 | 4 |
| 触头材料 | Silver Tin Oxide | 总长度 | 26.5 mm |
| 端接样式 | Plug In, QC - 0.250" (6.3mm) | 接触件端接 | Plug In |
| 位数 | 4 | 典型触点布局 | SPST-NO |
产品信息
| 类型 | General Purpose Relay | 功能 | Automotive |
| 继电器类型 | Automotive | 制造商全称 | MiniIso |
| 按下测试类型 | No | 应用细节 | Automotive |
环境参数
| 动作时间 | 8ms | 工作温度 | -40 to 85 °C |
