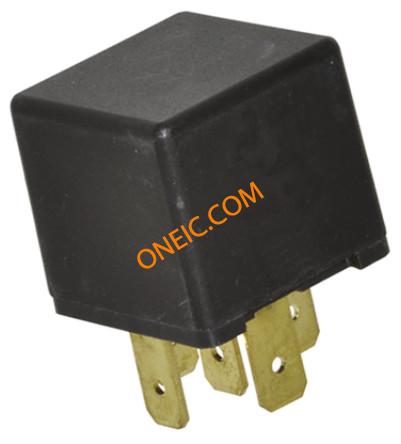

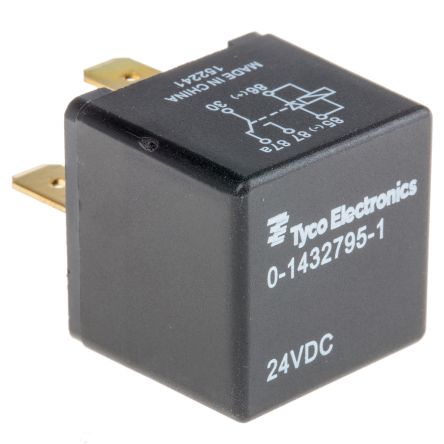

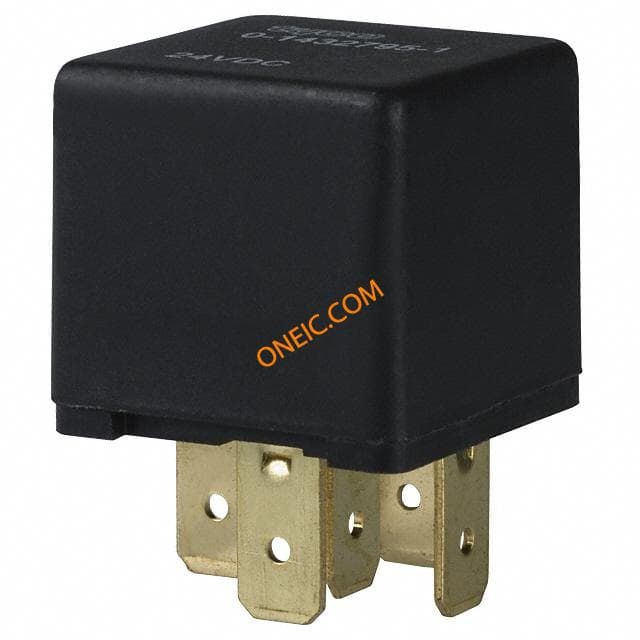

1432795-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay SPDT 35(NO)/20(NC)A 24VDC 360Ohm Plug-In Automotive Relays SPDT 24VDC w/ diode Mini ISO dust cover General Purpose / Industrial Relays SPDT 24VDC w/ diode Mini ISO dust cover RELAY AUTOMOTIVE SPDT 30A 24V Relay, MINI-ISO, 24V, Form C, AgSnO RELAY, AUTOMOTIVE, SPDT, 24VDC, 40A Relay,MINI-ISO,24V,FormC,AgSnO,Diode TE Connectivity 单刀双掷 插入式 非闭锁继电器, 24V |
| 分类 |
商业参数
| 产品类别 | Automotive Relays | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364190 |
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.6 W |
| 线圈电流 | 66.7 mA | 释放时间 | 13ms |
| 额定电压 | 14VDC | 线圈电阻 | 360 Ohm |
| 供电电压 | 24 V | 开关电压 | 28VDC - Nom |
| Vgs(th)（最大）@ Id | 2.4 VDC | 最大额定电流 | 35(NO)/20(NC) A |
| 最大触点电流 | :40A | 直流开关电压 | 14V dc |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 15.6 VDC | 触点额定电流 | 30A |
| 供电电压 (Vcc/Vdd) | :16V | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
机械参数
| 深度 | :26.5mm | 宽度 | 26.5 mm |
| 高度 | 24.5 mm | 长度 | 26.5 mm |
| 重量 | 0.027 | 包装方式 | Bulk |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :24.5mm |
| 安装类型 | Plug-In | 安装样式 | Socket |
| 引脚数 | 5 | 触头材料 | Silver Tin Oxide |
| 端接样式 | Plug In, QC - 0.250" (6.3mm) | 接触件端接 | Plug In |
| 典型触点布局 | SPDT | ||
产品信息
| 类型 | General Purpose Relay | 产品特性 | Diode |
| 功能 | Automotive | 继电器类型 | Automotive |
| 制造商全称 | MiniIso | 应用细节 | Automotive |
环境参数
| 动作时间 | 10ms | 工作温度 | -40 to 85 °C |
相关型号
