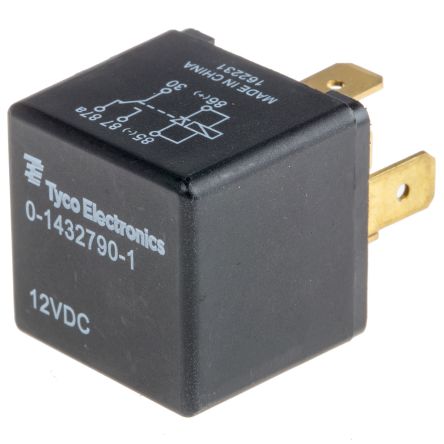

1432790-1

制造商	TE Connectivity Ltd.
描述	Electromechanical Relay SPDT 90(NO)/30(NC)A 12VDC 90Ohm Plug-In Automotive Relays SPDT 12VDC Mini ISO General Purpose / Industrial Relays SPDT 12VDC Mini ISO RELAY AUTOMOTIVE SPDT 30A 12V RELAY, MINI-ISO, PI, 12V, FORM C, AGSNO RELAY, SPDT, 12VDC, 30A RELAY,MINI-ISO,PI,12V,FORMC,AGSNO,DIODE 30 A 12 VDC 1 Form C SPDT Plug In Quick Connect Automotive Relay TE Connectivity 单刀双掷插入式非闭锁继电器, 12V
分类	工业电源组件和继电器功率继电器，2安培以上专用继电器

对参数有疑问？问 AI 助手

商业参数

产品类别	Automotive Relays	标准包装数量	Bulk
工厂包装数量	400

合规参数

RoHS

RoHS Compliant

海关税号

85364190

电气参数

线圈类型	Standard	线圈功率	1.6 W
线圈电流	133.3 mA	释放时间	13ms
额定电压	16 V	线圈电阻	90 Ohm
供电电压	12 V	开关电压	14 VDC
Vgs(th)（最大）@ Id	1.2 VDC	最大额定电流	90(NO)/30(NC) A
最大触点电流	:40A	直流开关电压	14V dc
平均正向功率	1.6 W	集电极-发射极饱和电压（最大）@ Vge, Ic	7.8 VDC
触点额定电流	30 A	供电电压 (Vcc/Vdd)	:16V
驱动电压（最大Rds On，最小Rds On）	12VDC

机械参数

深度	:26.5mm	宽度	:26.5mm
重量	0.027	包装方式	Bulk
触点形式	1 Form C (SPDT-BM)	高度（最大）	:24.5mm
安装类型	Plug-In	安装样式	Socket
引脚数	5	触头材料	Silver Tin Oxide
端接样式	Plug In, QC - 0.250" (6.3mm)	接触件端接	Plug In
典型触点布局	SPDT

产品信息

类型	General Purpose Relay	产品特性	Diode
功能	Automotive	继电器类型	Automotive
制造商全称	VF4Series	应用细节	Automotive

环境参数

动作时间

10ms

工作温度

-40 to 85 °C

文档与媒体

PDF 文档

NG_CD_1432790-1_B-122215.pdf

相关型号

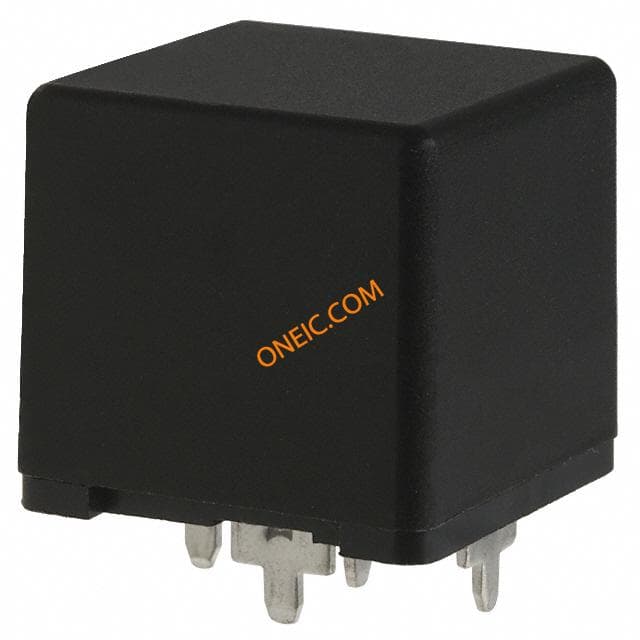

1432868-1
