点击放大查看

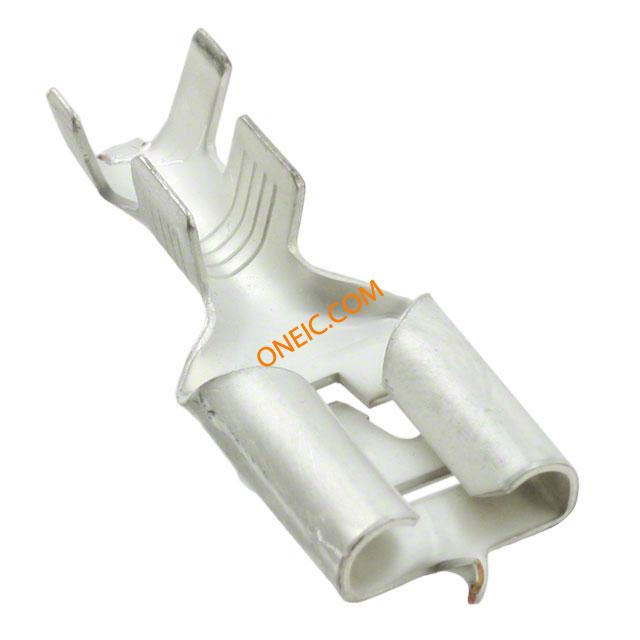

280756-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-12AWG RCP 29.25mm 11.1mm Tin Strip Terminals 10-12 AWG RECEPTACLE Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST .375 10-12 AWG Receptacle, FASTIN-FASTON 375, 12-10 AWG Quick Disconnect Terminal 10-12AWG RCP 29.25mm 11.1mm Tin Strip Product Highlights:ReceptacleTab Fit = 9.53 x 1.22 mmWire Range = 3.00-6.00² [12-10] mm [AWG]Insulation Diameter = 3.80-5.10 [.150-.201] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, CRIMP, FEMALE, 9.53MM RECEPTACLE,FASTIN-FASTON,12-10AWG Multiple Circuit Housings with Tabs & Receptacles TE Connectivity FASTIN-FASTON .375 系列 绝缘 压接插座 , 11.1 x 1.2mm, 镀锡触芯 FF 375 REC 3-6MM2 TPPB |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 2,000 | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Yellow | 深度 | 11.1 mm |
| 表面处理 | Tin | 重量 | 0.00204 |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 插片宽度 | 9.53 x 1.22 [.375 x .048] | 厚度 | 0.51 [0.020] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 导线线规 | 12-10 | 端接方式 | Crimp |
| 基体材料 | Phosphor Bronze | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.375 in x 0.048 in | 插片厚度 | 0.047" (1.19mm) |
| 端子类型 | Standard | 连接器类型 | Yes |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 绝缘颜色 | :(Not Available) | 总长度 | FASTIN-FASTON .375 |
| 包装数量 | Strip | 绝缘高度 | With |
| 绝缘直径 | 3.80-5.10 [.150-.201] | 绝缘材料 - 材质 | :(Not Available) |
| 线规或范围 - AWG | :12AWG | 线规或范围 - mm² | 3.00-6.00² [12-10] |
产品信息
| 备注 | According to DIN 46340, Part 4 | 类型 | Quick Disconnect Ter |
| 连接器性别 | Female | 系列 | 250 |
| 产品子类型 | Receptacle | ||
