点击放大查看

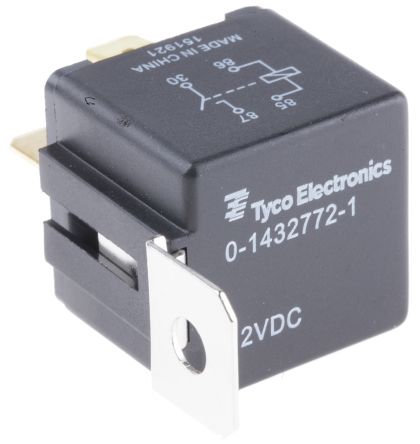

1432772-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | MINI-ISO, PI, 12V, FA, AGSNO, Automotive Relays SPST 30A QC 12VDC Mini-ISO General Purpose / Industrial Relays SPST 30A QC 12VDC Mini-ISO RELAY AUTOMOTIVE SPST 30A 12V RELAY, MINI-ISO, PI, 12V, FA, AGSNO Electromechanical Relay SPST-NO 90A 12VDC 90Ohm Plug-In AUTOMOTIVE RELAY, SPST-NO, 12VDC, 30A RELAY,MINI-ISO,PI,12V,FA,AGSNO,BRACKET TE Connectivity 单刀单掷 面板安装 非闭锁继电器, 12V |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Automotive Relays |
| 标准包装数量 | 100 | 工厂包装数量 | 400 |
合规参数
| RoHS | In Transition | 海关税号 | 85364110 |
| 抗辐射加固 | No | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.6 W |
| 线圈电流 | 133.3 mA | 线圈电压 | 12V |
| 释放时间 | 5ms | 可见输出 | No |
| 额定电压 | 14VDC | 线圈电阻 | 90 Ohms |
| 供电电压 | 12 VDC | 开关电压 | 14 VDC |
| Vgs(th)（最大）@ Id | 1.2 VDC | 二极管配置 | No |
| 最大额定电流 | 40A | 最大触点电流 | :40A |
| 直流开关电压 | 14V dc | 平均正向功率 | 1.6 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 7.8 VDC | 触点额定电流 | 30 A |
| 供电电压 (Vcc/Vdd) | :16V | 直流反向电压（Vr）（最大） | 16 V |
| 高侧电压（自举）最大 | 7.8VDC | 驱动电压（最大Rds On，最小Rds On） | 12VDC |
机械参数
| 密封 | Unsealed | 深度 | 31.6 mm |
| 高度 | 38.4 mm | 重量 | 0.0001 |
| 包装方式 | Bulk | 触点形式 | 1 Form A (SPST-NO) |
| 高度（最大） | :24.5mm | 安装类型 | Chassis Mount |
| 安装样式 | Socket | 引脚数 | 4 |
| 触头材料 | Silver Tin Oxide | 总长度 | 26.5 mm |
| 端接样式 | Plug In, QC - 0.250" (6.3mm) | 接触件端接 | Plug In |
| 位数 | 4 | 典型触点布局 | SPST |
产品信息
| 类型 | Automotive Relays | 系列 | :VF3 |
| 功能 | Automotive | 继电器类型 | Automotive |
| 制造商全称 | MiniIso | 按下测试类型 | No |
| 应用细节 | Automotive | ||
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 85°C |
