点击放大查看

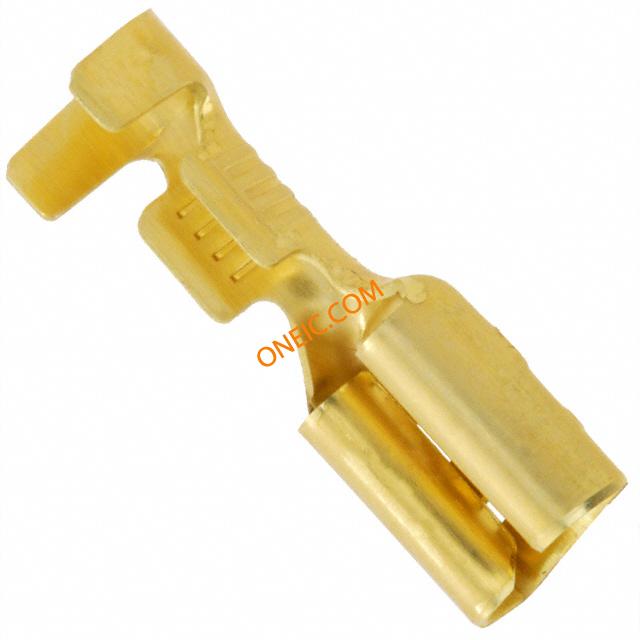

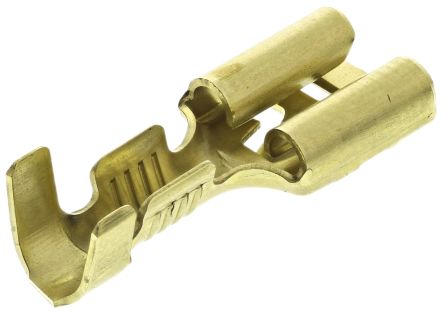

42281-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Strip Terminals .25 FF RPT 18-14 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST .250 14-18 AWG FASTON, female, 6.35x0.81 Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79-4.32 [.110-.170] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on RECEPTACLE,FASTIN-FASTON,.250,18-14AWG,.016 TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm FF 250 REC 18-14AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 11,000 | 工厂包装数量 | 11000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 最大频率 | Single | ||
机械参数
| 颜色 | Green | 深度 | 7.49 mm |
| 表面处理 | None | 长度 | 19.05mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 1/4 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2mm² |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | 无镀层 | 封装形式 | Single |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 厚度（最大） | 0.41 [0.016] |
| 触头材料 | Brass | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Strip | 绝缘高度 | With |
| 端接样式 | Wire | 适用端子尺寸 | 2.54 – 4.32 mm [ .11 – .17 in ] |
| 绝缘直径 | 2.79-4.32 [.110-.170] | 总厚度 | .41 mm [ .016 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 14AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
