点击放大查看

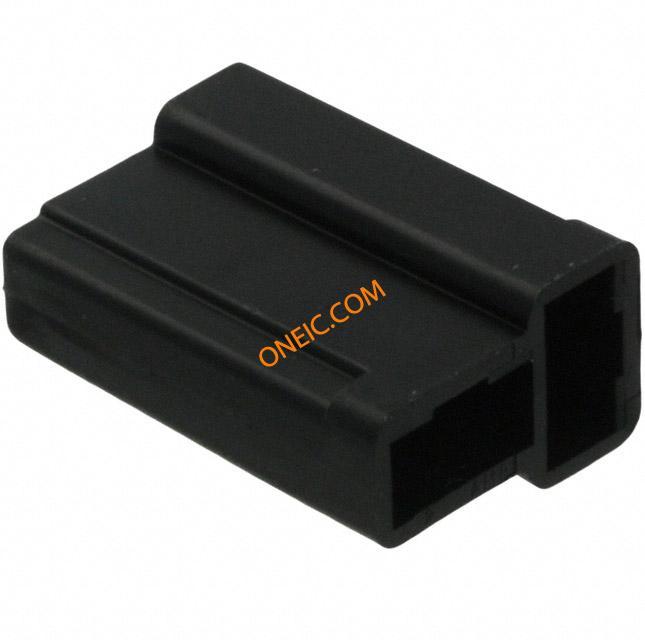

480115-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 7.7mm Crimp ST Loose Piece Headers & Wire Housings HSG REC 1X02C F/H V2 BLK Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 2POS .250 Conn Housing RCP 2 POS 7.7mm ST Loose Piece Conn Housing RCP 2 POS 7.7mm Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 6.35 mmLoose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on HOUSING, RECEPTACLE, FASTON, 2WAY RECEPTACLEHOUSING,.250SERIES,FASTIN-FASTON,2POSITION,BLACK 2 Circuit Receptacle Plug Fastin-Faston Housing FF 250 REC HSG 2P NYLON BLACK |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 7.7 mm |
| 重量 | 0.02 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Yes |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 主要材料 | FASTONTerminals | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 堆叠方向 | Perpendicular |
| 位数 | 2 | ||
产品信息
| 备注 | T Shaped Housing | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 480 | 制造商全称 | 0.250Series |
| 产品子类型 | Plugs - Housings | 电路数 | 2 |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
