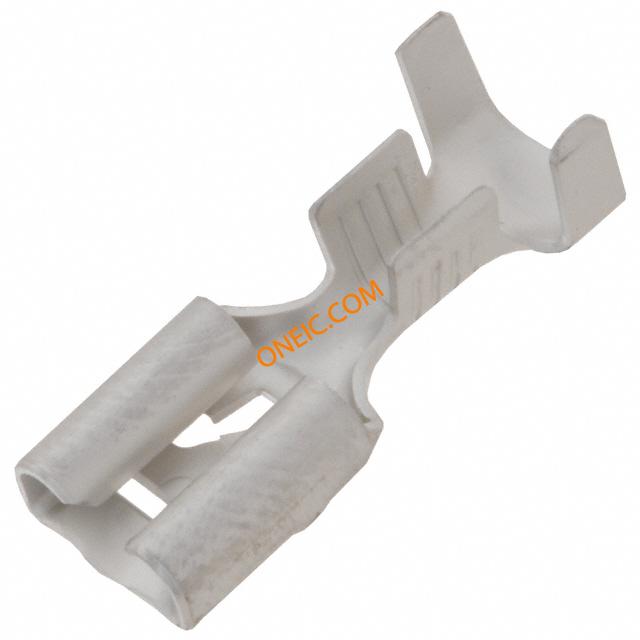

60249-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Tin Strip Terminals .250 FF REC 16-12 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 12-16 AWG TIN CONN RECEPT FAST AWG 12-16 TIN Receptacle contact, FASTIN-FASTON (REEL) Faston 250,crimp,receptacle,1.25-1.40mm Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = (2) 1.25-1.40; [(2) 16] mm [AWG], 1.25-3.00² [16-12] mm [AWG]Insulation Diameter = (2) 3.30 [.130] Max. mm [in], 4.06-5.33 [.160-.210] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP RECEPTACLE,FASTIN-FASTON,.250,16-12AWG,.016 NON INSULATED 12-16 AWG FREE-HANGING MOUNTING TYPE TERMINATION CRIMP RECEPTACLE TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FF 250 REC 16-12AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 9,000 | 工厂包装数量 | 9000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
机械参数
| 颜色 | Not Required | 深度 | 7.44 mm |
| 表面处理 | Tin | 长度 | 19.05mm |
| 重量 | 0 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 16-12 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Single | 壳体镀层 | Tin |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 厚度（最大） | 0.41 [0.016] |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 绝缘高度 | With | 绝缘直径 | (2) 3.30 [.130] Max., 4.06-5.33 [.160-.210] |
| 线规或范围 - AWG | :16AWG | 线规或范围 - mm² | 1.25-3.00² [16-12], (2) 1.25-1.40; [(2) 16] |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
