点击放大查看

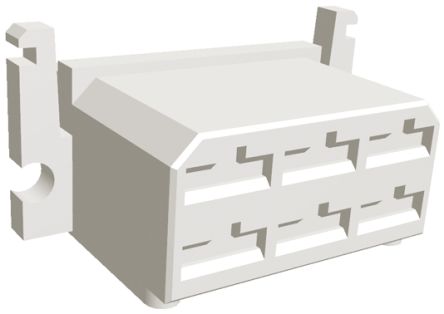

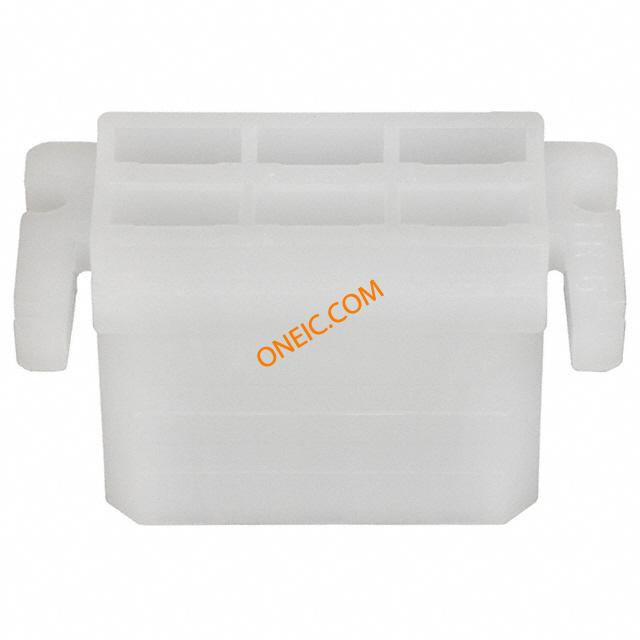

480003-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 9.14mm ST Loose Piece Headers & Wire Housings 6 CIR FF REC HSG N N Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECPT FASTIN-FAST 6CIR .250 Conn Housing RCP 6 POS 9.14mm ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 6Tab Fit = 6.35 mmLoose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on RECEPTACLE HOUSING, FASTON CONNECTOR RECEPTACLEHOUSING,.250SERIES,FASTIN-FASTON,6POSITION,NATURAL null TE Connectivity AMP FASTIN-FASTON 系列 6 触点 尼龙 压接端子外壳 FF 250 REC HSG 6P NYLON NAT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
| 材料阻燃等级 | UL 94V-2 | ||
机械参数
| 颜色 | Natural | 深度 | 24 mm |
| 间距 | 9.14 mm | 高度 | 19.3 mm |
| 重量 | 0 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 绝缘类型 | Insulated | 导线线规 | 18-14 |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Yes | 排数 | 2 |
| 壳体材料 | Nylon | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Loose Piece | 主要材料 | FASTONTerminals |
| 触点数 | 6 | 堆叠方向 | Top to Bottom and Side to Side |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 480 | 制造商全称 | 0.250Series |
| 产品子类型 | Contacts | 附件类型 | :Receptacle Housing |
| 电路数 | 6 | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
