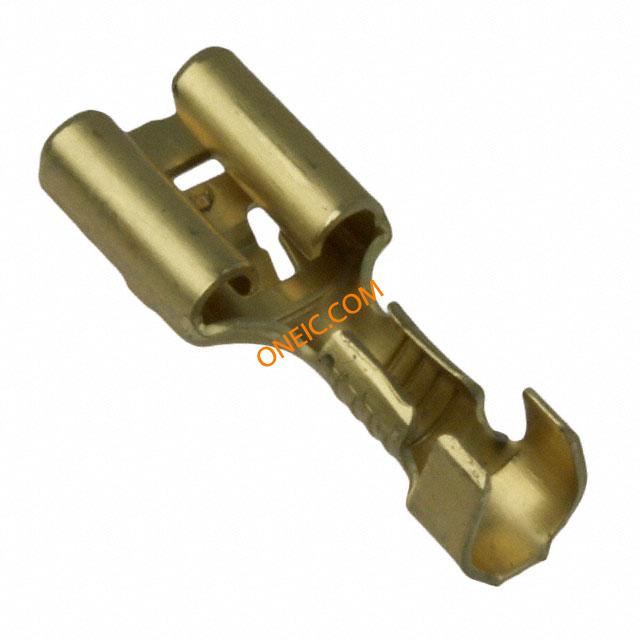

点击放大查看
42282-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 20.82mm Loose Piece Terminals .250 FF REC 016BR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 14-18 AWG .250 Crimp,Faston,rcp,strt,F,14-18awg,loose Quick Disconnect Terminal 14-18AWG RCP 20.82mm Loose Piece Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-4.06 [.120-.160] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 14-18AWG 0.250 CRIMP,RECPT,F,14-18,AWG TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm FF 250 REC 18-14AWG BR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | ||
机械参数
| 表面处理 | None | 长度 | 0.8 in |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.81 [0.032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 安装类型 | Wire | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2mm² |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | 无镀层 | 封装形式 | Single |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 绝缘高度 | With | 端接样式 | Crimp |
| 适用端子尺寸 | 2.54 – 4.06 mm [ .12 – .16 in ] | 绝缘直径 | 3.05-4.06 [.120-.160] |
| 总厚度 | .81 mm [ .032 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 14AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 类型 | Disconnects | 连接器性别 | Female |
| 系列 | 250 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle | ||
