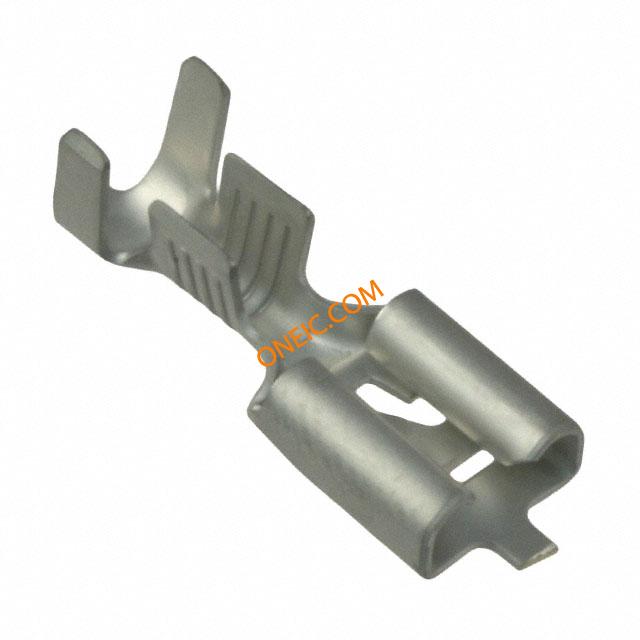

62891-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Tin Strip Terminals 250 FF RCPT 16-12 FASTON Uninsulated Receptacles & Housings CONN RCPT FAST 16-12AWG .250 Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FF 250 REC 16-12AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100778CT |
| 标准包装数量 | 8,000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 7.44 mm |
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Stranded | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 12-16 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | FASTON .250 |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | 母端 |
| 适用端子尺寸 | 3.81 – 4.83 mm [ .15 – .19 in ] | 绝缘直径 | 3.81-4.83 [.150-.190] |
| 绝缘材料 - 类型 | No | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 1.25-3.00² [16-12] |
| 第二连接器安装特性 | No | ||
产品信息
| 连接器性别 | Female | 系列 | 250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
