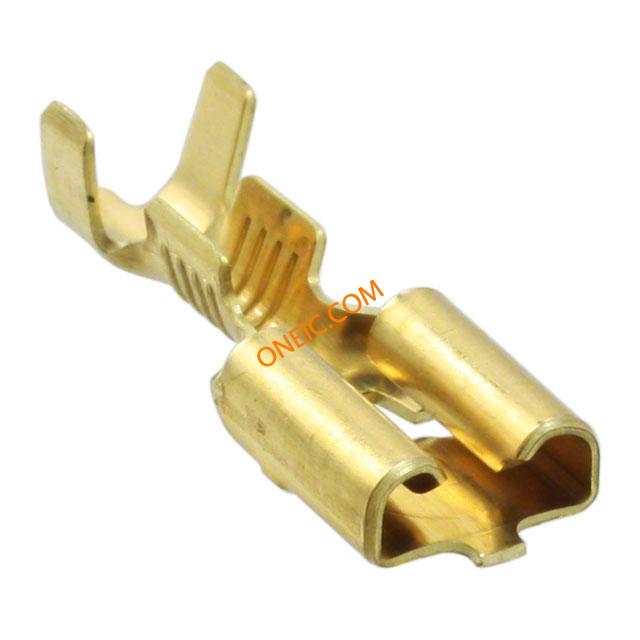

点击放大查看
60634-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Strip Terminals RCPT 18-14 AWG .250 BRASS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 14-18 AWG BRASS CONN RECEPT FAST AWG 14-18 BRASS TE Connectivity 250系列 压接插座 , 5.97 x 0.81mm FF 250 REC 18-14AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 10,000 | 工厂包装数量 | 10000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 最大频率 | Single | ||
机械参数
| 表面处理 | None | 长度 | 19.05mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Regular Wire | 绝缘类型 | Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6.35 mm x 0.81 mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2mm² |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | 无镀层 | 封装形式 | Single |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 绝缘高度 | With | 端接样式 | 母端 |
| 适用端子尺寸 | 2.54 – 4.32 mm [ .1 – .17 in ] | 绝缘直径 | 2.54-4.32 [.100-.170] |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 5.97 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 14AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 备注 | No front slot. | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
| 基础产品编号 | 60634 | ||
