点击放大查看

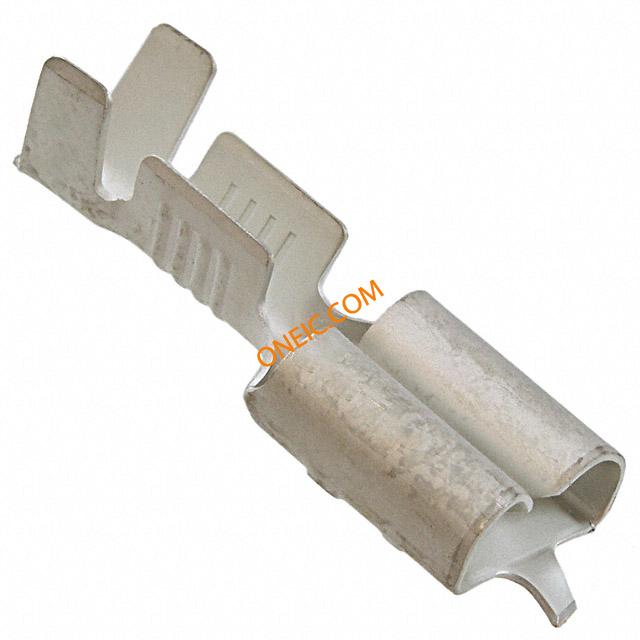

160927-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG RCP 19.2mm 7.4mm Tin Strip Terminals FLAG-FAST STECKH Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT STR 17-13.5AWG .250 Quick Disconnect Terminal 13-17AWG RCP 19.2mm 7.4mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 1.00-2.50² [17-13.5] mm [AWG]Insulation Diameter = 2.10-3.10 [.083-.122] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 REC 1.0-2.5MM2 TPPB |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A101754CT |
| 产品类别 | Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 颜色 | Yellow | 表面处理 | Tin |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.33 [0.013] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 导线线规 | 17-13 | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Multiple |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | With |
| 端接样式 | 母端 | 适用端子尺寸 | 2.1 – 3.1 mm [ .083 – .122 in ] |
| 绝缘直径 | 2.10-3.10 [.083-.122] | 绝缘材料 - 类型 | No |
| 总厚度 | .32 mm [ .013 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 40 |
| 线规或范围 - mm² | 1.00-2.50² [17-13.5] | ||
产品信息
| 备注 | Without Dimple; Chamfered | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
