点击放大查看

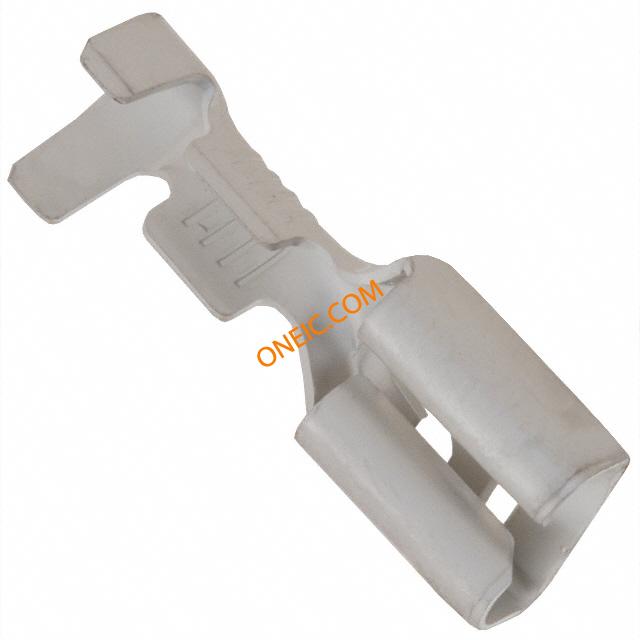

42281-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Tin Strip Terminals .25 FF RCPT 18-14 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 14-18 AWG TIN CONN RECEPT FAST AWG 14-18 TIN Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.49mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79-4.32 [.110-.170] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP RECEPTACLE,FASTIN-FASTON,.250,18-14AWG,.016 Fastin-Faston 0.250 Series 18-14 AWG Straight F-Crimp Receptacle Contact FF 250 REC 18-14AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 11,000 | 工厂包装数量 | 11000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
机械参数
| 颜色 | Not Required | 深度 | 7.49 mm |
| 表面处理 | Tin | 重量 | 0 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Single |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 厚度（最大） | 0.41 [0.016] | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Strip | 绝缘高度 | With |
| 绝缘直径 | 2.79-4.32 [.110-.170] | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
