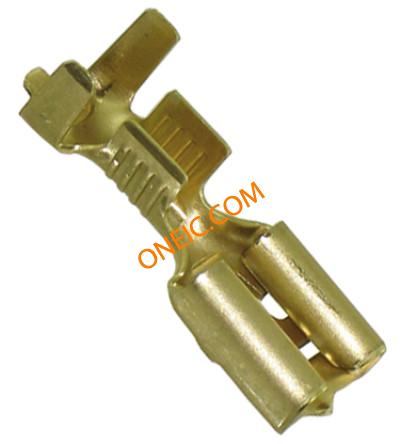

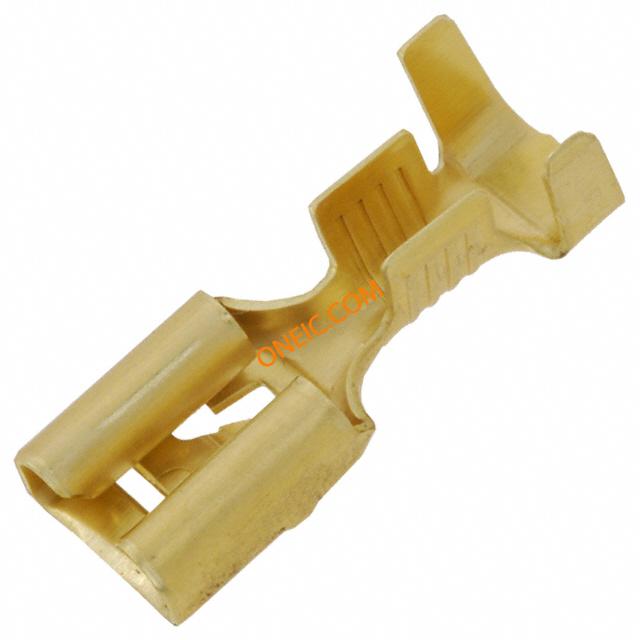

60249-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Strip Terminals .250 REC 16-12 AWG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 12-16 AWG BRASS CONN RECEPT FAST AWG 12-16 BRASS Receptacle, FASTIN-FASTON 250, 16-12 AWG Quick Disconnect Terminal 12-16AWG RCP 19.05mm 7.44mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = (2) 1.25-1.40; [(2) 16] mm [AWG], 1.25-3.00² [16-12] mm [AWG]Insulation Diameter = (2) 3.30 [.130] Max. mm [in], 4.06-5.33 [.160-.210] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL FEMALE DISCONNECT 0.81MM TAB, CRIMP Contact,Receptacle;.250FF;16-12AWG;BR FF 250 REC 16-12AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 9,000 | 工厂包装数量 | 9000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
机械参数
| 颜色 | Not Required | 深度 | 7.44 mm |
| 表面处理 | None | 重量 | 0.002 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 16-12 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | Yes | 接触镀层 | :- |
| 封装形式 | Single | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 厚度（最大） | 0.41 [0.016] | 总宽度 | 0.296" |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 主要材料 | QuickDisconnect | 绝缘高度 | With |
| 端接样式 | Crimp | 绝缘直径 | (2) 3.30 [.130] Max., 4.06-5.33 [.160-.210] |
| 线规或范围 - AWG | :16AWG | 线规或范围 - mm² | 1.25-3.00² [16-12], (2) 1.25-1.40; [(2) 16] |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | FASTON |
| 产品子类型 | Receptacle | ||
文档与媒体
相关型号
180941
TE Connectivity AMP Connectors
Conn Housing RCP 3 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING 3CIRCUIT Housing 3 way Receptacle Fastin-Faston Terminals 3 CIR FF RCPT HSG N Conn Housing RCP 3 POS Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 3Tab Fit = 6.35 mmLoose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONNECTOR HOUSING, RCPT, 3 WAY, NYLON Housing3wayReceptacleFastin-Faston Terminals cover; female; natural; ways:3 Housing for FASTON receptacles 6.30 mm / 8.45 mm Poles 3 FASTIN-FASTON, 180941, TE Connectivity TE Connectivity FASTIN-FASTON .250 系列 3 触点 尼龙 压接外罩 FF 250 REC HSG 3P NYLON NAT
1-626040-0
te connectivity / amp
Conn Housing 5 POS ST Relay Sockets & Hardware RELAY BASE MOLDING Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING .250 5POS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 5Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on
521743-1
te connectivity / amp
250 FASTIN-FASTON RCPT HSG Conn Housing 250FASTIN-FASTONRCPTHSG Headers & Wire Housings 250 FASTIN-FASTON RCPT HSG 521743-1
1-480281-0
te connectivity / amp
Conn Housing RCP 6 POS 9.14mm ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN HOUSING RCPT 6POS .250 Headers & Wire Housings 6 CIR FF REC HSG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 6Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on 6 Circuit Faston Housing Receptacle w/ Tabs FF 250 REC HSG 6P NYLON BLACK
880110
TE Connectivity AMP Connectors
Connector Accessories Receptacle Housing Nylon Natural Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 4POS NATRL Headers & Wire Housings ISOLADOR Conn Housing PL 4 POS 10.8mm Crimp ST Cable Mount Loose Piece Conn Housing PL 4 POS 10.8mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Gender = PlugHousing Accepts Contact Type = ReceptacleNumber of Circuits = 4Tab Fit = 6.35 mmSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTON HOUSING RECEPTACLE NAT NYLON
925324-1
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 1POS BLACK Headers & Wire Housings 1 POS FF RECP. HSG.(BLACK) Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 1Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 REC HSG 1P NYLON BLACK
180905-5
te connectivity / amp
Connector Accessories Receptacle Housing Polyamide 6/6 Black Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 1POS BLACK

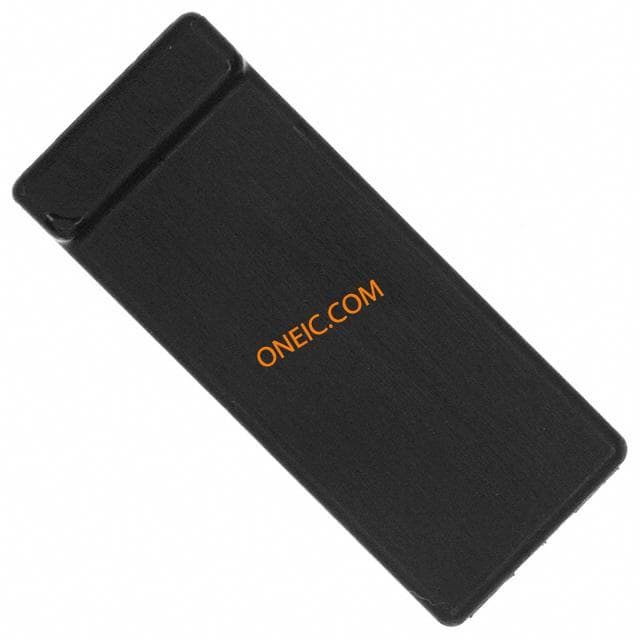

480054-4
