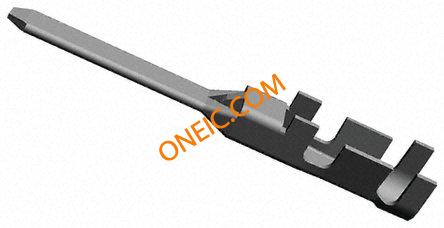

点击放大查看

917485-5

制造商	TE Connectivity Ltd.
描述	Contact PIN Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 14-16AWG CRIMP TIN Contact male crimp 16-14AWG Sn 2L D-3 Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactmalecrimp16-14AWGSn2LD-3 TE Connectivity Dynamic 3000 系列公压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 TAB CONT. 2L 16-14
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称

A29306CT

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

供电电压	250, 600	连接器阻抗	压接
最大额定电流	15

机械参数

包装方式	Tape & Reel (TR)	电缆类型	分离式导线, 绞线
导线线规	14-16 AWG	端接方式	Crimp
触头类型	Signal	安装类型	开式压线筒
插针或插孔	Pin	电缆直径	2.27mm²
连接器类型	Connector Power	接触镀层	Tin
壳体镀层	Nickel	插入件材料	铜合金
插入力	Standard	触头材料	Copper Alloy
总长度	25.8 mm [ 1.01 in ]	包装数量	Reel
尺寸/外形	1.23 – 2.27 mm², 16 – 14 美国线规	端接排数	压接
端接样式	公端	端接表面处理	Tin
接触件端接	Crimp	绝缘直径	2.20-2.80 [.086-.110]
绝缘材料 - 类型	2.2 – 2.8 mm [ .086 – .11 in ]	兼容外壳尺寸（如TM-700等）	母端（插座）端子
接触件表面处理 - 配合	锡	线规或范围 - AWG	2L
线规或范围 - mm²	1.25-2.00Â² [16-14]

产品信息

连接器性别	PIN	系列	D-3
产品子类型	Contact	连接类型	Wire

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-55 – 105 °C [ -67 – 221 °F ]
