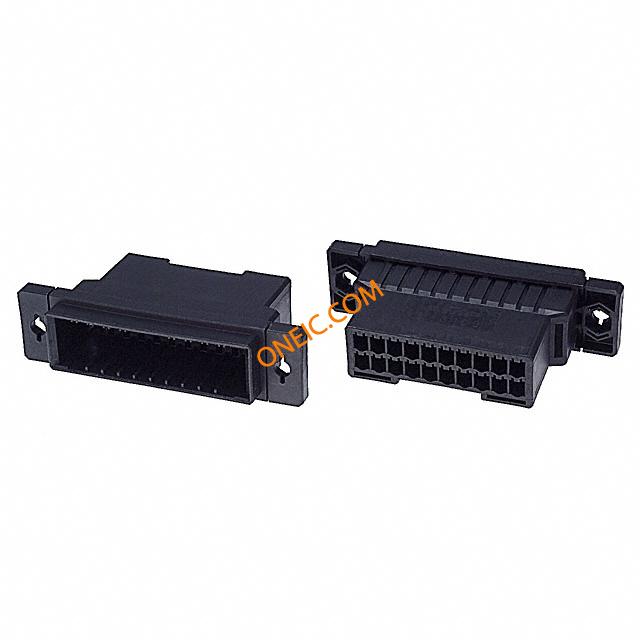

178803-8
| 制造商 | |
| 描述 | Conn Housing PL 20 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 20POS DUAL PANL Housing PM 20 way 2 row TAB 3.81mm D-3 Headers & Wire Housings 20 POS CAP HSG PANEL MOUNT HOUSING, PLUG, D-3100D, 20WAY TE Connectivity Dynamic 3000 系列 2 行 3.81mm 节距 20 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3 W-T-W TAB HSG 20P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定交流电压 | 250 | ||
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 3.81 mm | 宽度 | 17.78mm |
| 长度 | 67mm | 重量 | 0.02 |
| 包装方式 | Bulk | 导线线规 | 16 AWG |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 安装样式 | Panel |
| 排数 | 2 | 壳体材料 | Thermoplastic Polyester |
| 包装数量 | Bag | 第一触头极性 | Pin (Male) |
| 触点数 | 20 | 接触件端接 | Crimp |
| 位数 | 20 | ||
产品信息
| 备注 | Housing is secured onto panel by push rivet | 类型 | Housing |
| 连接器性别 | PL | 系列 | D-3100D |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | Wire-to-Board Connector |
