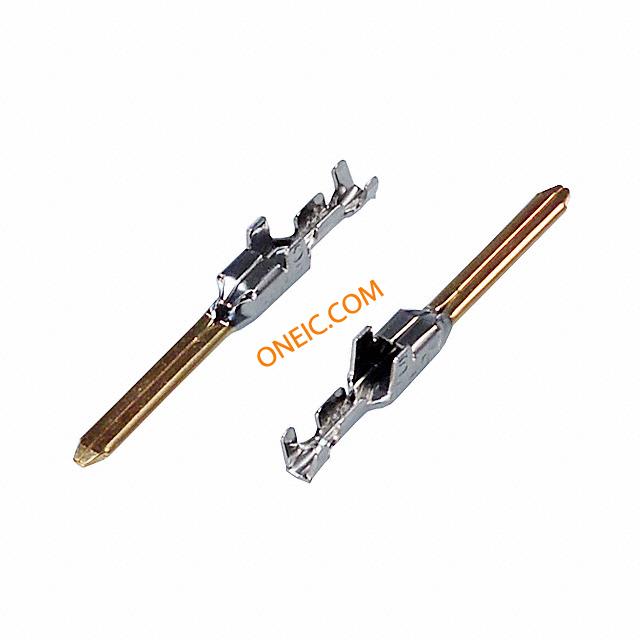

175287-3
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 24-28AWG CRIMP 30GOLD Contact PIN Crimp ST Cable Mount Bag Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 TAB CONT. L/P |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 250, 600 | 连接器阻抗 | 压接 |
| 最大额定电流 | 15 | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | 2.9 mm | 间距 | Not Required mm |
| 高度 | 3.4 mm | 包装方式 | Bulk |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 24-28 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Tab | 连接器类型 | Connector Power |
| 接触镀层 | Gold (30) | 安装样式 | Cable |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 插入力 | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 25.8 mm |
| 包装数量 | Bag | 尺寸/外形 | .08 – .24 mm², 28 – 24 美国线规 |
| 端接样式 | 公端 | 触点数 | Not Required |
| 端接表面处理 | Gold over Nickel | 接触件端接 | Crimp |
| 绝缘直径 | 0.79-1.40 [.031-.055] | 绝缘材料 - 类型 | .8 – 1.4 mm [ .031 – .055 in ] |
| 兼容外壳尺寸（如TM-700等） | 母端（插座）端子 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | S | 线规或范围 - mm² | 0.08-0.24² [28-24] |
| 护套（绝缘）厚度 | 1.3 µm [ 51.18 µin ] | ||
产品信息
| 备注 | Compatible with all D-3000 Series Connectors. | 类型 | Contact |
| 连接器性别 | PIN | 系列 | D-3 |
| 产品子类型 | Contact | 连接类型 | Wire |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
