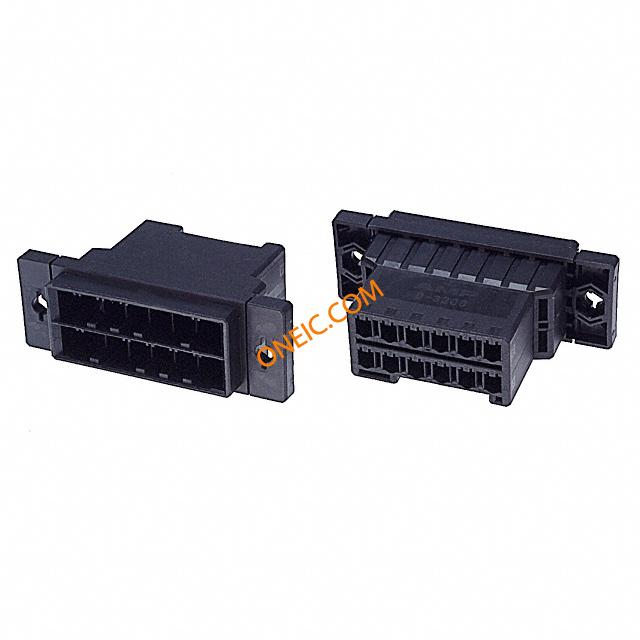

3-179555-6
| 制造商 | |
| 描述 | Conn Housing PL 12 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSNG TAB 12POS KEY-XY PNL Housing 12w,Tab,5.08mm,XY-key,D-3 Headers & Wire Housings 12 POS HOUSING TAB KEY XY Conn Housing PL 12 POS 5.08mm Crimp ST Cable Mount Bag Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Housing12w,Tab,5.08mm,XY-key,D-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 12 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3200 WTW TAB HSG 12P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600V | 供电电压 | 600 |
| 额定交流电压 | 600 | ||
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 5.08 mm | 宽度 | 20.32mm |
| 高度 | 33.6 mm [ 1.322 in ] | 长度 | 57.91mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 排间距 | 0.300" (7.62mm) | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 安装样式 | Panel |
| 排数 | 2 | 壳体材料 | Nylon |
| 包装数量 | Bag | 面板安装类型 | 带有 |
| 主要材料 | Connector | 端接样式 | 公端 |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 母端护套 | 典型触点布局 | 网络 |
产品信息
| 备注 | Housing is secured onto panel by push rivet | 类型 | Housing |
| 连接器性别 | PL | 系列 | D-3200M (Modular Type) |
| 产品特性 | Polarizing Key | 钥匙类型 | XY |
| 可密封 | 否 | 编码、键控 | Yes |
| 制造商全称 | D-3000Series | 预装 | 否 |
| 产品子类型 | Housing | 连接类型 | Wire |
| 选择性装载 | No | 其他规格 | Without |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
