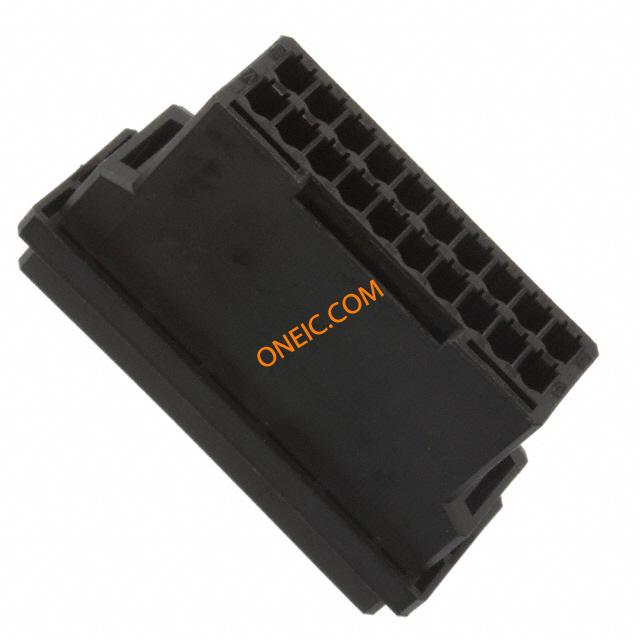

3-917659-6
| 制造商 | |
| 描述 | Conn Housing RCP 12 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 5.08 12POS DUAL KEY-XY Housing 12w,receptacle,5.08mm,XY-key,D-3 Headers & Wire Housings 12 POS RECPT 5.08 KEY XY DUAL Dynamic Series Connectors Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 12KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Housing12w,receptacle,5.08mm,XY-key,D-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 12 路 直 母 电缆安装 PCB 壳体 DYNAMIC 3200 D/ROW REC HSG 12P |
| 分类 |
商业参数
| 标准包装规格 | 200 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Latched | 供电电压 | 600 |
| 额定交流电压 | 600 | ||
机械参数
| 颜色 | Black | 深度 | 22.8mm |
| 间距 | 5.08 mm | 宽度 | 14.77mm |
| 高度 | 22.8 mm [ .897 in ] | 长度 | 42.54mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 排间距 | 0.300" (7.62mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 插入力 | 9.8 牛顿 |
| 壳体材料 | Thermoplastic Polyester | 包装数量 | Bag |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 兼容外壳尺寸（如TM-700等） | 插头外壳和接头 |
| 典型触点布局 | 网络 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3200M (Modular Type) |
| 产品特性 | Polarizing Key | 钥匙类型 | XY |
| 可密封 | 否 | 编码、键控 | Yes |
| 制造商全称 | D-3000Series | 预装 | 否 |
| 产品子类型 | Housing | 连接类型 | Wire |
| 选择性装载 | No | 其他规格 | Without |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1-917484-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Heavy Duty Power Connectors REC CONT 2L 16-14 Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 2L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 2L 16-14
1-175196-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Contact,female,crimp,20-16AWG,D-3 Headers & Wire Housings DYNAMIC D-3 REC CONT 1-175196-5 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, AWG20-16 CONTACT, CRIMP, SOCKET, 20-16AWG, REEL TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 REC CONT/L PRE-TIN
3-179555-6
te connectivity / amp
Conn Housing PL 12 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSNG TAB 12POS KEY-XY PNL Housing 12w,Tab,5.08mm,XY-key,D-3 Headers & Wire Housings 12 POS HOUSING TAB KEY XY Conn Housing PL 12 POS 5.08mm Crimp ST Cable Mount Bag Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Housing12w,Tab,5.08mm,XY-key,D-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 12 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3200 WTW TAB HSG 12P
1-175195-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 20-24AWG CRIMP 15GOLD Contact female crimp 24-20AWG Au M D-3 Headers & Wire Housings REC CONT/M AU 0.38 Dynamic Series Connectors Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/M AU 0.38
1-175217-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 20-24AWG CRIMP 30GOLD Contact,female,crimp,24-20AWG,D-3 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金镀镍触点 DYNAMIC REC CONTACT M L/P
175216-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 30GOLD Contact female crimp 28-24AWG Au S D-3 Headers & Wire Housings RCPT 28-24 AWG 30 AU CRIMP STD INSERT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp28-24AWGAuSD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P
1-353715-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 3L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 16-14AWG TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 3L 16-14
3-316081-3
te connectivity / amp

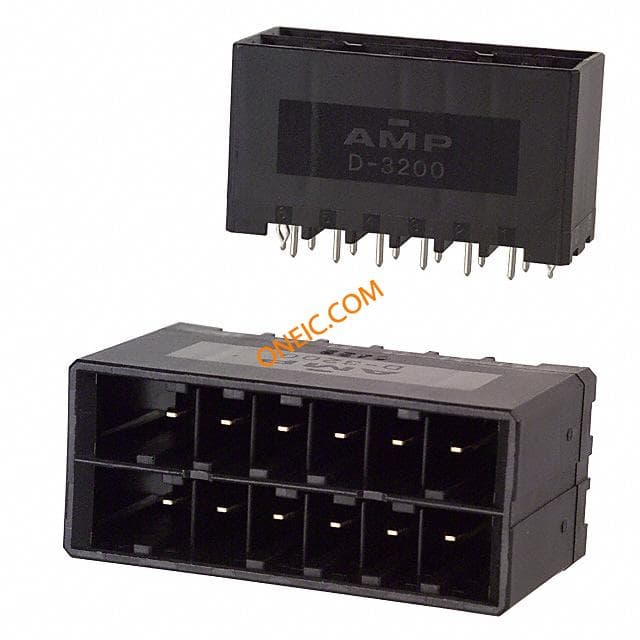

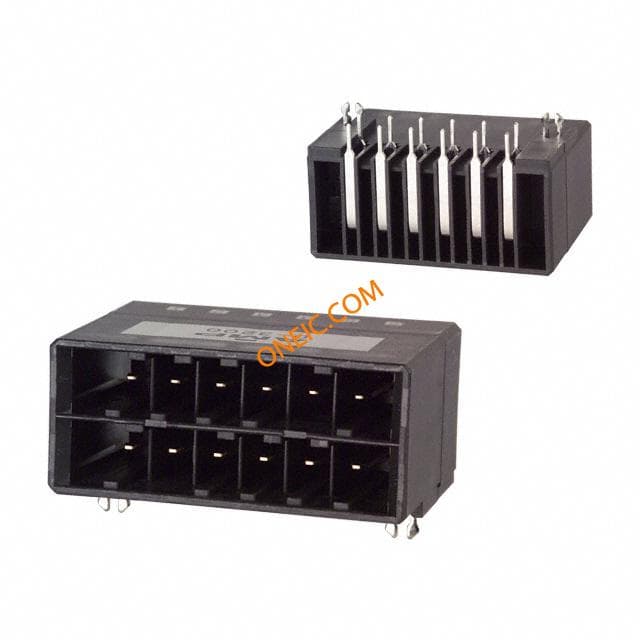

Conn Power HDR 12 POS 5.08mm Solder RA Thru-Hole 12 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 12POS R/A KEY-XY 30GOLD Headers & Wire Housings 12 POS HDR R/A 30 AU KEY XY Conn Power HDR 12 POS 5.08mm Solder RA Thru-Hole 12 Terminal 1 Port Tube Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3200 HDR ASSY 12P H
3-917658-5
te connectivity / amp
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Tube Dynamic Series Connectors CONN HEADR 12POS STR KEY-XY TIN Headers & Wire Housings 12 POS HDR VERT TIN KEY XY Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardConnectorConnector Type = Header - TabContact Type = TabTabSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic,
1-353717-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Contact female crimp 16-14AWG Au 3L D-3 Heavy Duty Power Connectors REC L/P 3L 16-14 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, 16-14AWG, CRIMP Contactfemalecrimp16-14AWGAu3LD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC L/P 3L 16-14
1-175196-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP 30GOLD Contact female crimp 20-16AWG Au L D-3 Headers & Wire Housings CONTACT RCPT GOLD Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp20-16AWGAuLD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/L AU 0.76
3-316081-2
te connectivity / amp
Conn Power HDR 12 POS 5.08mm Solder RA Thru-Hole 1 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 12POS R/A KEY-XY 15GOLD TE Connectivity D-3000 Series 5.08mm Pitch 12 Way Right Angle Heavy Duty Power Connector, Solder Termination, 8A Headers & Wire Housings 12 POS HDR R/A 15 AU KEY XY Headerhoriz12wayTAB5.08mmXYkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 12路 直角 PCB 针座, 焊接端接, 8A , 通孔 DYNAMIC D-3200 HDR ASSY 12P H
3-917658-2
te connectivity / amp
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Tube Dynamic Series Connectors CONN HEADR 12POS STR KEY-XY 15AU D-3000 12 Male Straight Heavy Duty Power Connector, Through Hole,600V ac DYNAMIC D-3200 HDR ASSY 12P V DYNAMIC D-3200 HDR ASSY 12P V Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert12wayTAB5.08mmXYkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 12路 直 PCB 针座, 焊接端接 , 通孔
1-175218-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Heavy Duty Power Connectors CONTACT RCPT TIN Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CRIMP SOCKET, 16-20AWG DYNAMICPOSTHEADER,3.81DYNAMICRECLLPTN20-16 Contact; female; 0.5÷1.4mm2; D-3; tinned; crimped, on cable 3.81 DYNAMIC REC L LP TN 20-16
1-917484-3
te connectivity / amp
Conn Contact F 1 POS Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Headers & Wire Housings RECPT 16-14 AWG Contact SKT Crimp ST Cable Mount Reel Contact SKT Crimp ST Cable Mount Reel Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 REC CONT 2L 16-14
175216-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 15GOLD Contact,receptacle,crimp,28-24AWG,D-3 Heavy Duty Power Connectors D3100 CONTACT SKT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 28-24AWG CONTACT,REC,CRIMP TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P
3-179554-6
te connectivity / amp

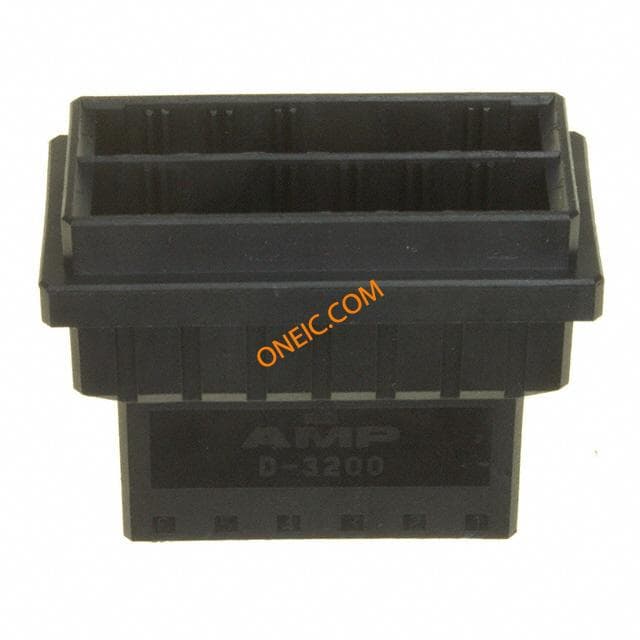

Conn Housing M 12 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 12POS KEY-XY Housing FH 12 way TAB 5.08mm XY key D-3 Headers & Wire Housings 12 POS HOUSING TAB KEY XY HousingFH12wayTAB5.08mmXYkeyD-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 12 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3200 WTW TAB HSG 12P
