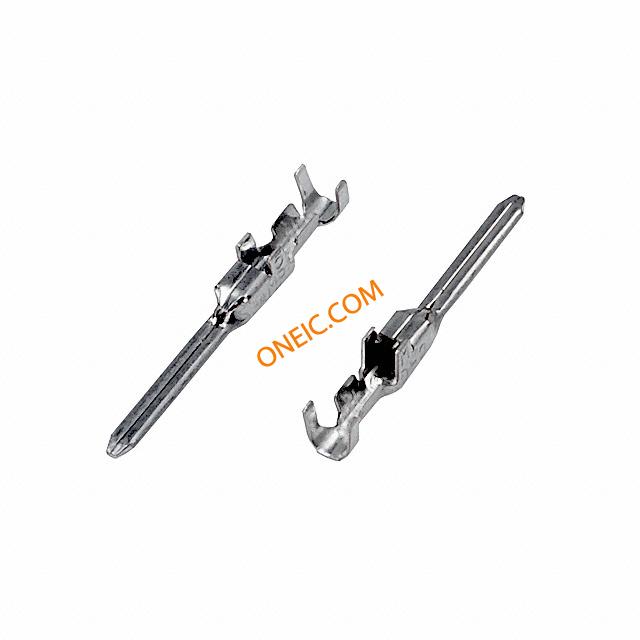

175288-5
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Bag Terminals TAB CONTACT 24-20 Dynamic Series Connectors CONN TAB 20-24AWG CRIMP TIN Contact male crimp 24-20AWG Sn M D-3 Contact PIN Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactTabProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactmalecrimp24-20AWGSnMD-3 TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 TAB CONT. M L/P |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 250, 600 | 连接器阻抗 | 压接 |
| 最大额定电流 | 15 | ||
机械参数
| 颜色 | Green | 长度 | 25.3 mm |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 电缆类型 | 分离式导线, 绞线 | 绝缘类型 | Not Insulated |
| 导线线规 | 24-20 | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Wire |
| 插针或插孔 | Pin | 电缆直径 | 0.6mm² |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 线束直径 | 0.6 mm | 插入件材料 | 铜合金 |
| 插入力 | Standard | 触头材料 | Copper Alloy |
| 总长度 | 25.3 mm [ .996 in ] | 包装数量 | Bag |
| 尺寸/外形 | .2 – .6 mm², 24 – 20 美国线规 | 端接排数 | 压接 |
| 端接样式 | Crimp | 端接表面处理 | Tin |
| 接触件端接 | Crimp | 绝缘直径 | 1.20-2.60 [.047-.102] |
| 绝缘材料 - 类型 | Tin | 兼容外壳尺寸（如TM-700等） | 母端（插座）端子 |
| 接触件表面处理 - 配合 | 锡 | 线规或范围 - AWG | M |
| 线规或范围 - mm² | 0.20-0.60² [24-20] | ||
产品信息
| 备注 | Compatible with all D-3000 Series Connectors. | 连接器性别 | PIN |
| 系列 | 752 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contact | 连接类型 | Wire |
