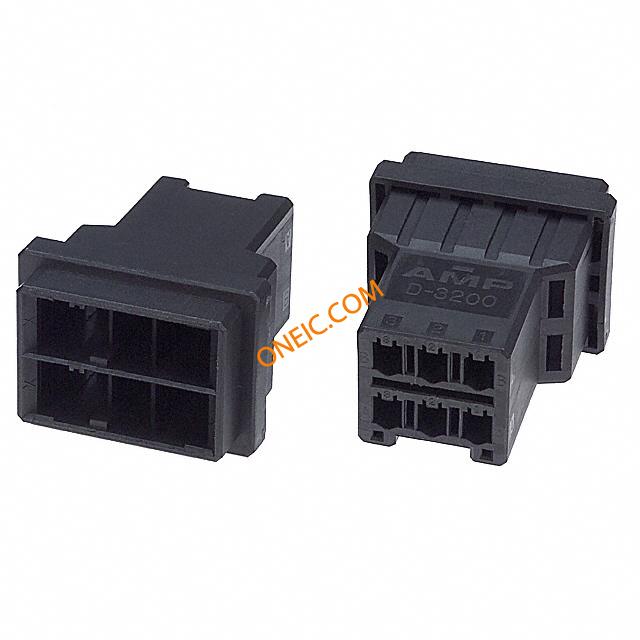

点击放大查看

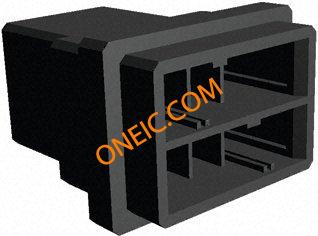

1-179554-3
| 制造商 | |
| 描述 | Conn Power M 6 POS 5.08mm ST 6 Terminal 1 Port Bag Dynamic Series Connectors CONN HOUSING TAB 6POS KEY-XX Housing FH 6 way TAB 5.08mm XX key D-3 Heavy Duty Power Connectors WTW TAB HSG 6P Conn Power M 6 POS 5.08mm ST 6 Terminal 1 Port Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 6Mount = Free HangingSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, PLUG, D-3200M, 6WAY HousingFH6wayTAB5.08mmXXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm 节距 6 路 直 公 PCB 壳体 DYNAMIC D-3200 WTW TAB HSG 6P |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 VAC | 额定交流电压 | 600 |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 20.32mm |
| 间距 | 5.08 mm | 宽度 | 33.6mm |
| 高度 | 33.6 mm | 长度 | 28.11mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 排间距 | 0.300" (7.62mm) | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 排数 | 2 |
| 插入力 | Female | 壳体材料 | Nylon |
| 总长度 | 28.11 mm | 包装数量 | Bag |
| 主要材料 | Connector | 端接样式 | Crimp |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | L Fitting 900121-2 is used to secure housing onto panel. | 类型 | Power |
| 连接器性别 | M | 系列 | D-3200M (Drawer Type), D-3200M (Modular Type) |
| 产品特性 | Polarizing Key | 钥匙类型 | XX |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Housing | 连接类型 | Wire |
| 端口数 | 1 Port | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
