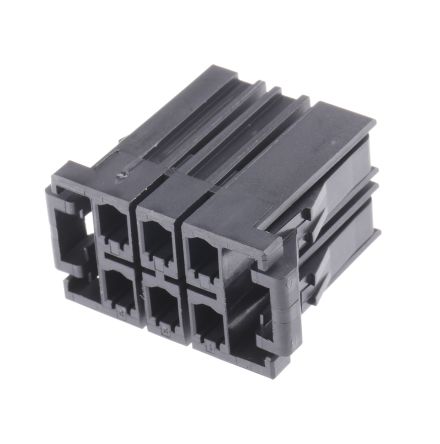

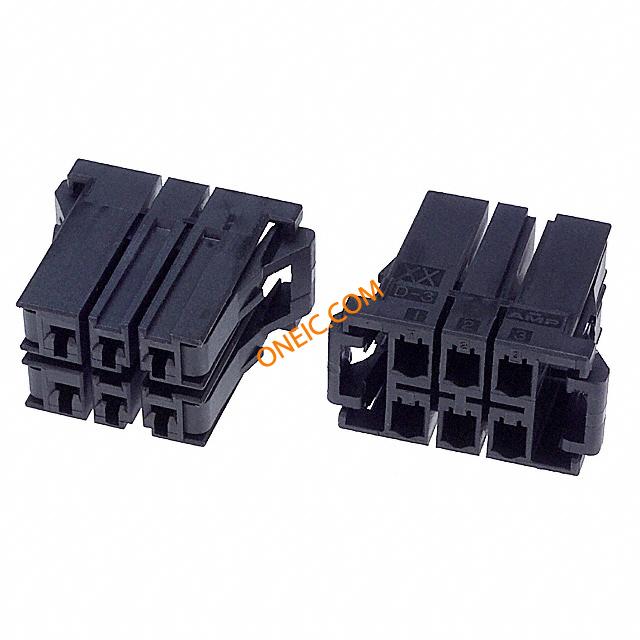

1-178129-6
| 制造商 | |
| 描述 | Conn Housing RCP 6 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 5.08 6POS KEY-XX Housing FH 6w 2row Rec 5.08mm XX key D-3 Headers & Wire Housings 6P RCPT HSG Conn Housing RCP 6 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 6KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, D-3200S, 6WAY HousingFH6w2rowRec5.08mmXXkeyD-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 6 路 直 母 电缆安装 PCB 壳体 DYNAMIC 3200 REC HSG 6P (DBL) |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 额定交流电压 | 600 | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 22.8mm |
| 间距 | 5.08 mm | 宽度 | 14.77mm |
| 高度 | 14.77 mm | 长度 | 27.3mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 排间距 | 0.300" (7.62mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Free Hanging |
| 排数 | 2 | 锁定特性 | :Latch |
| 本体材料 | :Nylon (Polyamide) | 壳体材料 | Nylon |
| 总长度 | 27.3 mm | 包装数量 | Bag |
| 主要材料 | Connector | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3200M (Modular Type) |
| 产品特性 | Polarizing Key | 钥匙类型 | XX |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Housing | 连接类型 | Wire |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 工作温度 | -55C to 105C | ||
