1-178139-5
| 制造商 | |

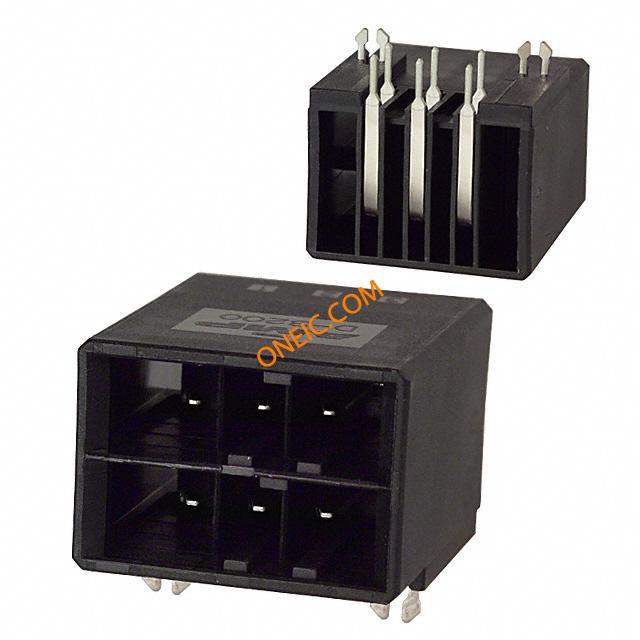

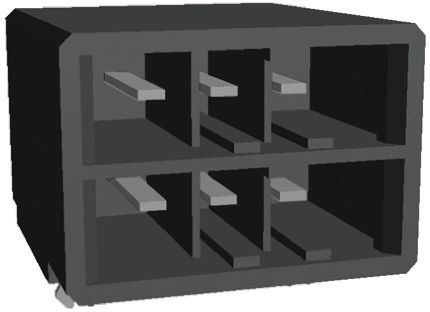

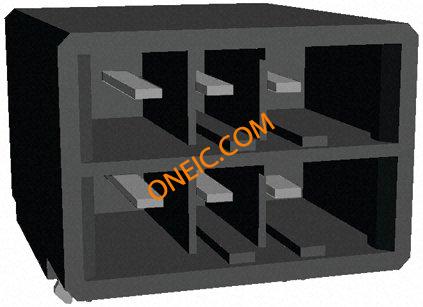

| 描述 | Conn Power HDR 6 POS 5.08mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 6POS R/A KEY-XX TIN D-3000 6 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings 6 POS HDR R/A TIN KEY XX Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 6Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhor6w2rowTAB5.08mmXXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 6路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3200 HDR H 6P ASSY |
| 分类 |
商业参数
| 标准包装规格 | 20 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V ac | 额定交流电压 | 600 |
| 最大额定电流 | 8 | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 宽度 | 27.18 mm [ 1.07 in ] | 高度 | 18.47 mm [ .727 in ] |
| 长度 | 24.16 mm [ .951 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 方向 | 直角 |
| 排间距 | 0.300" (7.62mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 5.08 x 5.08 [.200 x .200] |
| 触点形状 | Rectangular | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 触点时序 | Without |
| 安装样式 | Thru Hole | 排数 | 2 |
| 壳体镀层 | Tin | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 安装特性 | 固定支脚, 固定支脚 | 包装数量 | Tube |
| 面板安装类型 | 不带 | 主要材料 | Power |
| 端接排数 | 焊接 | 端接样式 | 公端 |
| 触点数 | 6 | 端接表面处理 | Tin |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 母端护套 |
| 触头长度-柱 | 3.8 mm [ .149 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 双排 |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 11 mm [ .433 in ] |
| 接触镀层厚度 | 78.7µin (2.00µm) | ||
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | HDR | 系列 | D-3200M (Drawer Type), D-3200M (Modular Type) |
| 覆盖范围 | 覆盖 | 产品特性 | Board Lock, Polarizing Key |
| 钥匙类型 | XX | 编码、键控 | Yes |
| 制造商全称 | D-3000Series | 预装 | 是 |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
环境参数
| 封装热阻 | 1.6 mm [ .062 in ] | ||
文档与媒体
相关型号
1-178129-6
te connectivity / amp

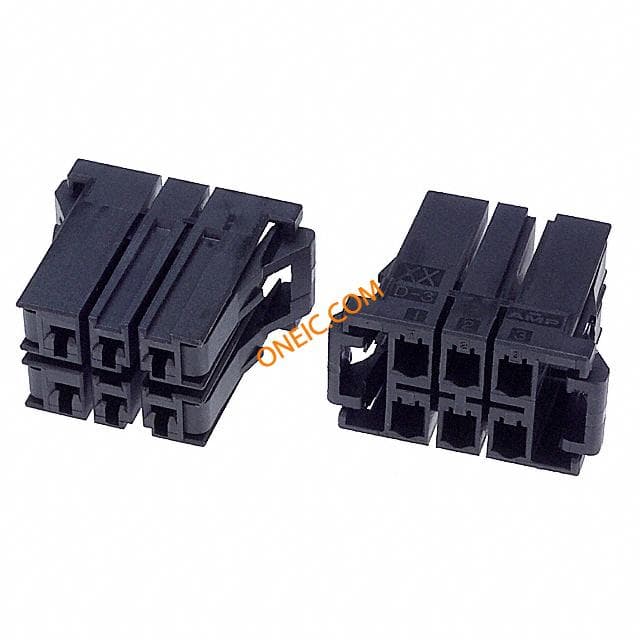

Conn Housing RCP 6 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 5.08 6POS KEY-XX Housing FH 6w 2row Rec 5.08mm XX key D-3 Headers & Wire Housings 6P RCPT HSG Conn Housing RCP 6 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 6KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, D-3200S, 6WAY HousingFH6w2rowRec5.08mmXXkeyD-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 6 路 直 母 电缆安装 PCB 壳体 DYNAMIC 3200 REC HSG 6P (DBL)
