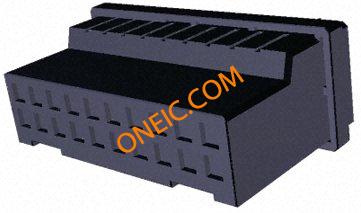

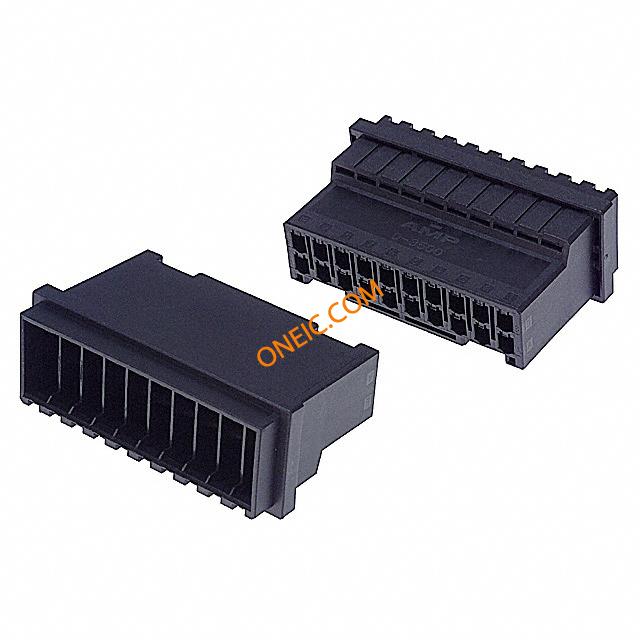

917242-8
| 制造商 | |
| 描述 | Conn Housing M 20 POS 5.08mm ST Bag CONN HOUSING TAB 20POS DUAL FREE Housing FH 20 way TAB 5.08mm D-3 Headers & Wire Housings 20 POS HOUSING TAB DUAL POLY Conn Housing M 20 POS 5.08mm Crimp ST Cable Mount Bag Conn Housing M 20 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:ConnectorHousingConnector Style = PlugContact Type = TabApplies To WireSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HousingFH20wayTAB5.08mmD-3 TE Connectivity Dynamic D-3500 系列 2 行 5.08mm 节距 20 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3500 WTW TAB HSG 20P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 90 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | 是 | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 600 | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 5.08 mm | 宽度 | 21.52mm |
| 高度 | 21.52 mm | 长度 | 56.75mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Tab |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 安装样式 | CableMount |
| 排数 | 2 | 插入力 | 9.8 牛顿 |
| 壳体材料 | Nylon | 包装数量 | 90 |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | 公端 | 触点数 | 20 |
| 接触件端接 | Crimp | 位数 | 20 |
| 兼容外壳尺寸（如TM-700等） | 母端护套 | 典型触点布局 | 网络 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | 系列 | D-3000 |
| 可密封 | 否 | 制造商全称 | D-3000Series |
| 预装 | 否 | 产品子类型 | Plugs - Housings |
| 选择性装载 | No | 其他规格 | Without |
| 适用产品/相关产品 | Sensor Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55C to 105C |
文档与媒体
