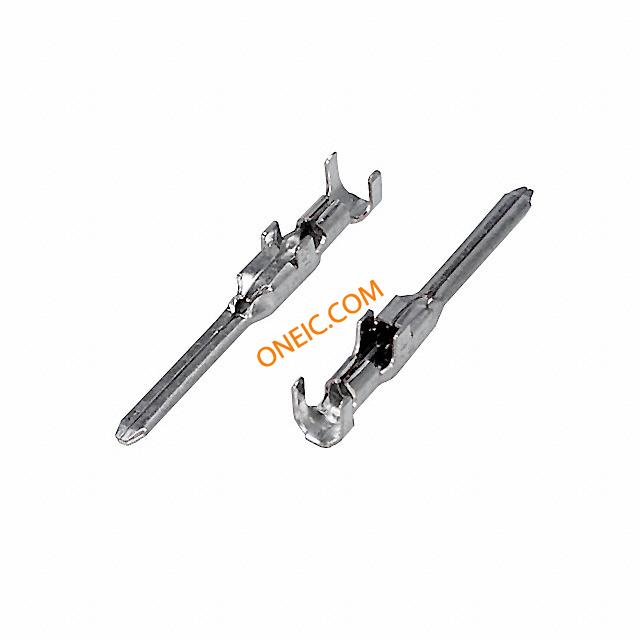

175289-5
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 16-20AWG CRIMP TIN Heavy Duty Power Connectors TAB CONTACT 20-16 CRIMP CONTACT, TAB, 16-20AWG 3.81 DYNAMIC TAB LP TN 20-16 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, TUV, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 重量 | 0.036 | 包装方式 | Bulk |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 插入力 | Standard | 触头材料 | Copper Alloy |
| 包装数量 | Bag | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 端接表面处理 | Tin |
| 接触件端接 | Crimp | 绝缘直径 | 1.80-2.80 [.071-.110] |
| 线规或范围 - AWG | L | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 外径-未扩张 | :2.8mm | ||
产品信息
| 备注 | Compatible with all D-3000 Series Connectors. | 连接器性别 | PIN |
| 系列 | D-3 | 产品子类型 | Contact |
| 连接类型 | Wire | 适用产品/相关产品 | :D-3 Series Connectors |
环境参数
| 工作温度 | :105°C | ||
